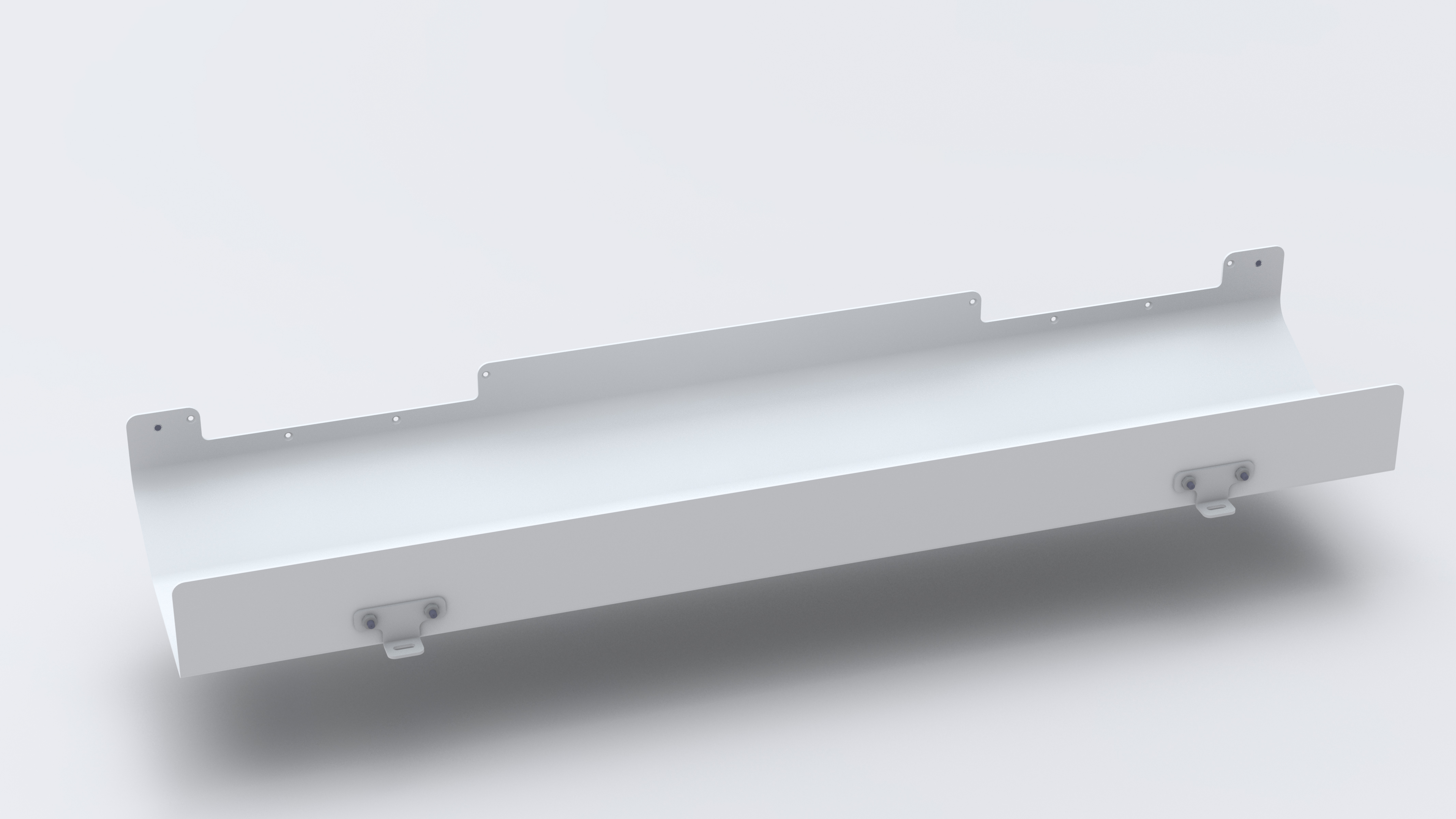

DCX-HINC-KIT01W

DCX Channel Kit

...

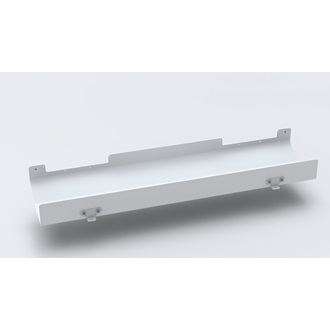

DCX Horizontal In-cabinet Channel Kit (One Patch Cord Tray), Central Office White

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Environmental Space

Indoor

Suitable Applications

Optical Distribution Frame, Data Centers, Central Equipment Room

Construction

Weight

11.750 lbs

Height

3.810 in

Width

36.000 in

Depth

9.000 in
Physical Specifications

Max Capacity

4614 fibers (1.6mm cables), 2307 (1.6mm DX/ZIP cables), 1429 fibers (2mm cables)

Mechanical Characteristics
Mechanical Tests
Description
Temperature Range

Operating Temperature Range

-10°C To +60°C

Storage Temperature Range

-10°C To +75°C

Product Material
Materials
Description Material Color
Horizontal In-cabinet Channel Assembly Steel White
Standards

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Included Parts

Hardware kit, see notes

Related Parts

DCX Frame Module & Patch Panel

Product Notes

Packaging

Packaged in a cardboard box

Notes

Hardwar kit contains: Thread Cutting Screws 10-32 (2x), Quick Start Guides (2x). For more information, refer to Quick Start Guide PX106861 (English/French) or visit our web site at http://www.belden.com/dcx

History

Update and Revision

Revision Number: 0.31 Revision Date: 12-12-2022

Show All Specifications
Hide Specifications
Part Numbers
Item # Color
DCX-HINC-KIT01W White
