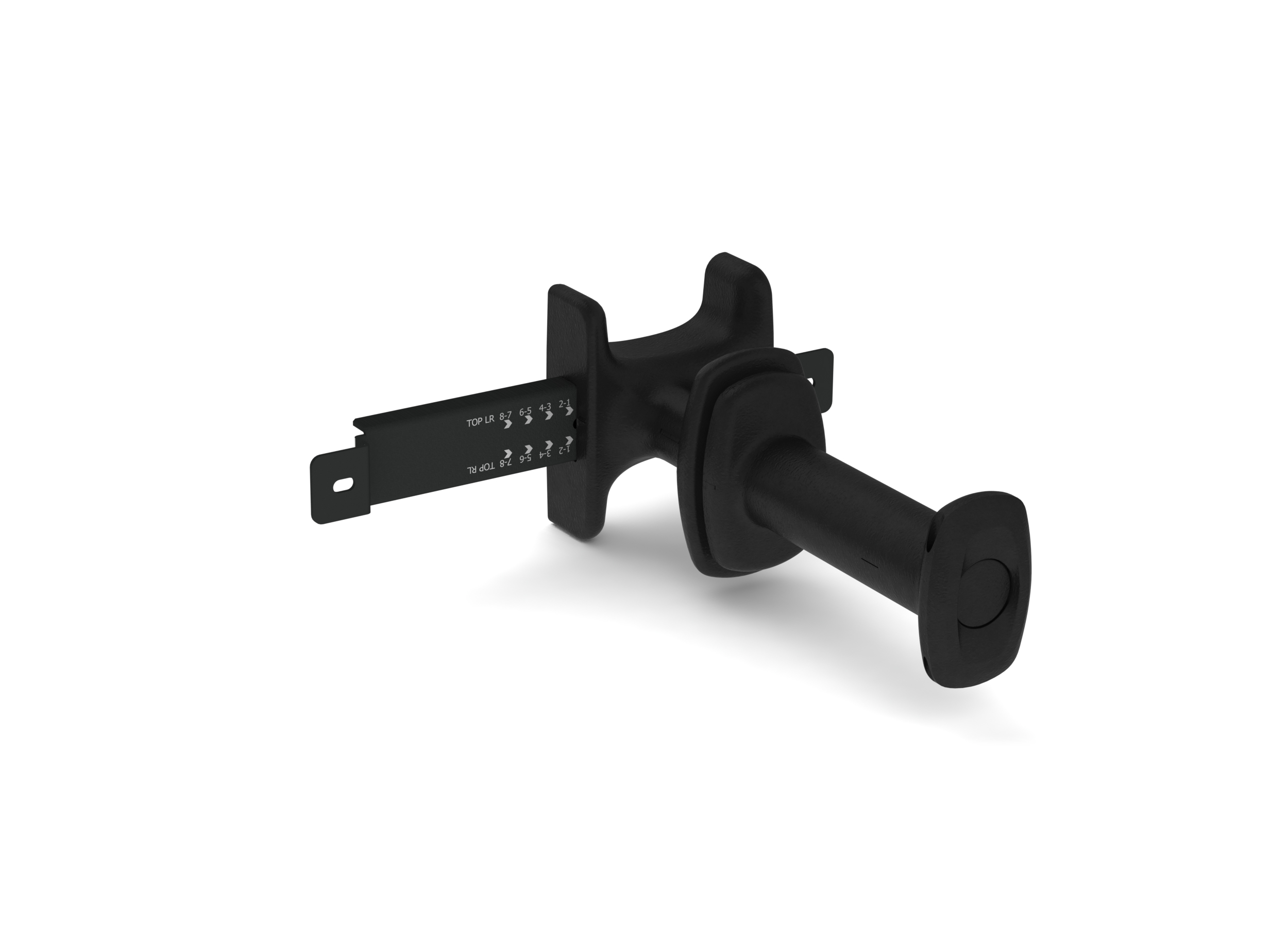

DCX-SPOO-KIT02B

DCX Telescopic Spool Kit

...
DCX Patch Cord Telescopic Spool Kit (1 Spool + Management Bar), Black

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Environmental Space

Indoor

Suitable Applications

Optical Distribution Frame, Data Centers, Central Equipment Room

Construction

Weight

1.210 lbs

Height

4.730 in

Width

11.130 in

Depth

11.280 in
Mechanical Characteristics
Mechanical Tests
Description
Temperature Range

Operating Temperature Range

-10°C To +60°C

Storage Temperature Range

-10°C To +75°C

Product Material
Materials
Description Material Color
Spool Assembly PC/ABS Black
Management Bar Steel Black
Standards

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Included Parts

Hardware kit, see notes

Related Parts

DCX Frame Module & Patch Panel

Product Notes

Packaging

Each kit is assembled and packaged in a cardboard box

Notes

Hardware kit contains: Thread Cutting Screws 10-32 (2x), #8-32 screw for plastic (2x), Quick Start Guide documents (2x). For more information, refer to Quick Start Guide PX106857 (English/French) or visit our web site at http://www.belden.com/dcx

History

Update and Revision

Revision Number: 0.28 Revision Date: 05-31-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color
DCX-SPOO-KIT02B Black

Resources
All Resources
Resource Center
Installation Guides
PX106862-EN_QS Guide_TELESCOPIC SPOOL.pdf
