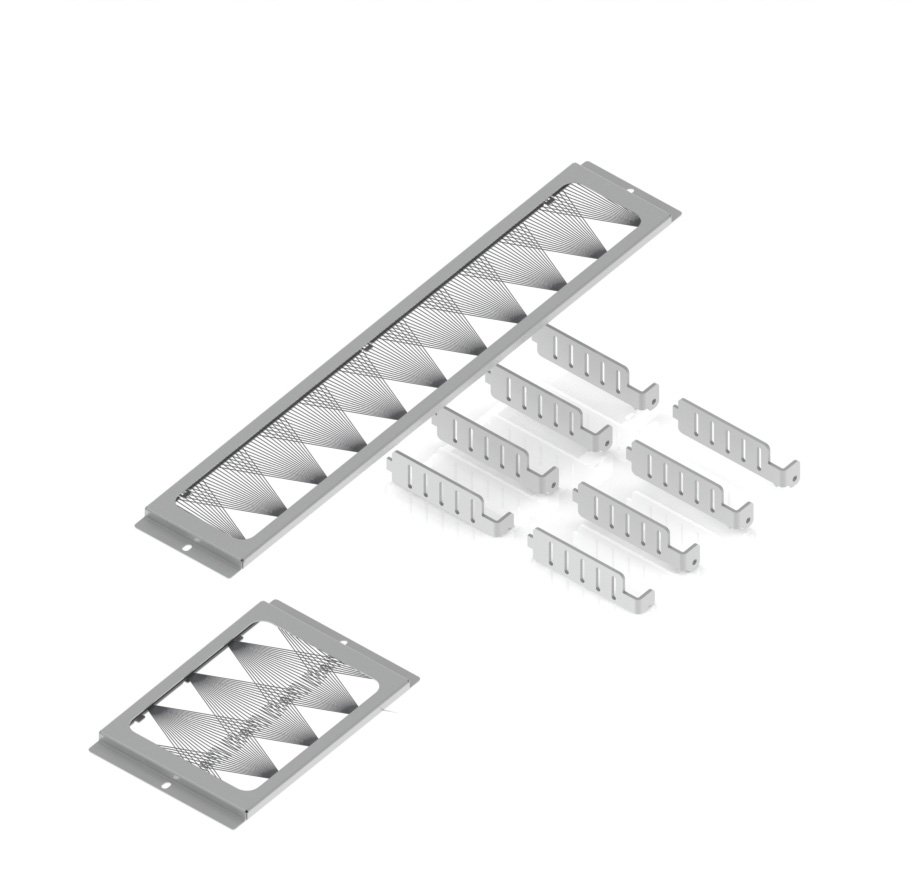

DCX-TOPE-KIT03W

DCX Cable Attachment Bracket - Top, Central Office White

...
DCX Cable Attachment Bracket - Top (4 Brackets for 24 Cables), Central Office White
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Environmental Space

Indoor

Suitable Applications

Optical Distribution Frame, Data Centers, Central Equipment Room

Construction

Weight

0.190 lbs

Height

1.500 in

Width

0.870 in

Depth

4.850 in
Physical Specifications

Max Capacity

24 Cables

Mechanical Characteristics
Mechanical Tests
Description
Temperature Range

Operating Temperature Range

-10°C to +60°C

Storage Temperature Range

-10°C to +75°C

Product Material
Materials
Description Material Color
Cable Entrance Bracket - Top Steel White
Standards

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Included Parts

Hardware kit: #10-32 screw with external tooth washer, (1) per bracket

Related Parts

DCX Frame Module & Patch Panel

Product Notes

Packaging

Packaged in a cardboard box (4 per box)

Notes

For more information, visit our web site at http://www.belden.com/dcx

History

Update and Revision

Revision Number: 0.35 Revision Date: 12-12-2022

Show All Specifications
Hide Specifications
Part Numbers
Item #
DCX-TOPE-KIT03W

Resources
All Resources
Resource Center
Installation Guides
PX106858-EN_QS Guide_CABLE DISTRIBUTION ATTACH.pdf
