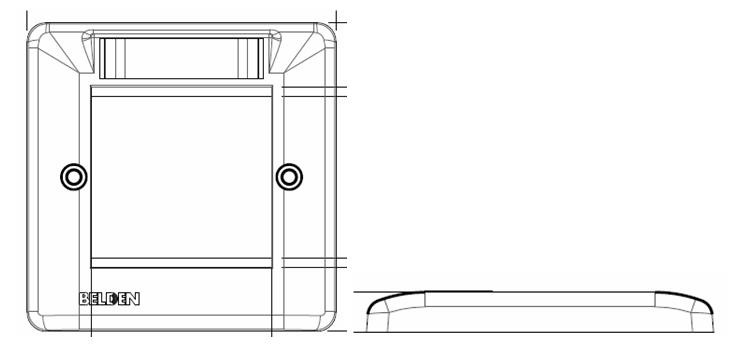

FACEPLATE EUROMOD SERIES

Faceplate Euromod Outlet

...
EUROMOD (50x25mm) Modular Outlet Faceplate

Regions Available: EMEA
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800,3600, 2400 and 1200

Physical Characteristics (Overall)

Height

86 mm

Width

86 mm

Depth

10 mm

Packaging

Individually packaged in a plastic bag.

Connectors
Materials
Description Material
Faceplate Plastic - PC-ABS, UL94V-0
Mechanical Characteristics

Footprint/Type

KeyConnect & MDVO

Plug /Jack Compatibility

RJ45

Standards

TIA/EIA Compliance

ISO/IEC 11801-1:2017

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU Directive 2002/95/EC (RoHS)

Yes

MII Order #39 (China RoHS)

EUP 50

Flammability, LS0H, Toxicity Testing

UL Flammability

UL-94V0

Related Part Numbers

Related Parts

Compatible with UTP KeyConnect, UTP MDVO and UTP and Shielded REV Connect Multimedia Modules for 10GX, CAT6+ and CAT5E.

History

Update and Revision

Revision Number: 0.32 Revision Date: 05-31-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Port Count
NN01535 Black 2 Insert
NN01536 Black 4 Insert
NN01547 Grey 2 Insert
NN01548 Grey 4 Insert
NN01523 White 2 Insert
NN01524 White 4 Insert
Show All Parts Number
Show Less
