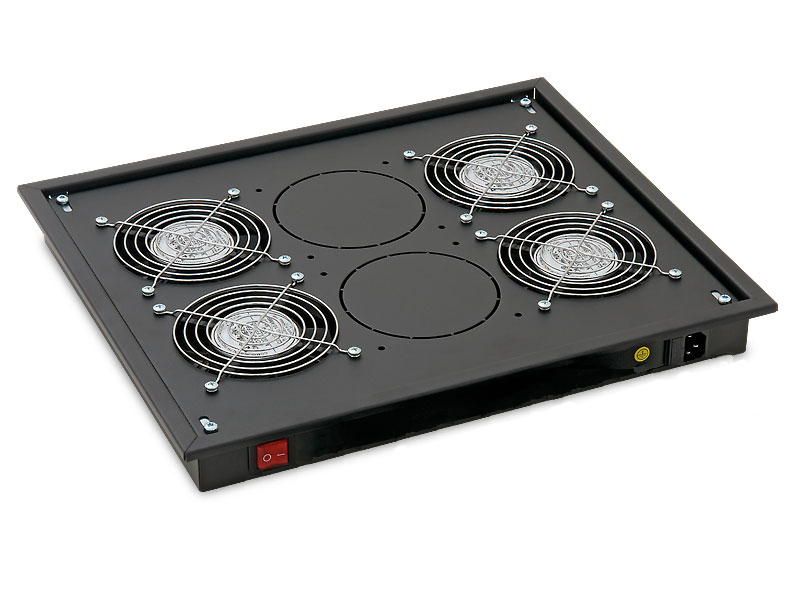

Product Number: FAN UNIT W/O CORD E-SERIES

Fan unit with thermostat for E-Serie Cabinets and wallmounts (EDAF11xx and EDAF61xx)

Fan unit with thermostat, without power cord (C14 Power socket for 230V) for E-Serie Cabinets and wallmounts.

  • Availability:
    EMEA
  • Status:
    Active
FAN UNIT W/O CORD E-SERIES
5 of 5

Specifications

Expand All

Environmental Space

Indoor

Input Voltage

230 V

EU Directive 2011/65/EU (RoHS 2)

Yes

MII Order #39 (China RoHS)

EUP 50

Included Parts

Package does not include power cord. Connection to fan unit required C13 plug. Cord sets are available: PPC-series

Packaging

Individually packed in a box.

Update and Revision

Revision Number: 0.188 Revision Date: 02-26-2026

Included Parts

Package does not include power cord. Connection to fan unit required C13 plug. Cord sets are available: PPC-series

Packaging

Individually packed in a box.

Update and Revision

Revision Number: 0.188 Revision Date: 02-26-2026


Report An Error

Part Numbers

Item # Color # Fans Noise Level Air flow Application
EDAF1121 Gray 2 57.8 dB 109 m^3/h E-Series Cabinets (except ESN 600mm deep and END 800x600)
EDAF1122 Black 2 57.8 dB 109 m^3/h E-Series Cabinets (except ESN 600mm deep and END 800x600)
EDAF1141 Gray 4 59.9 dB 139 m^3/h E-Series Cabinets (except ESN 600mm deep and END 800x600)
EDAF1142 Black 4 59.9 dB 139 m^3/h E-Series Cabinets (except ESN 600mm deep and END 800x600)
EDAF1161 Gray 6 61.4 dB 160 m^3/h E-Series Cabinets (except ESN 600mm deep and END 800x600)
EDAF1162 Black 6 61.4 dB 160 m^3/h E-Series Cabinets (except ESN 600mm deep and END 800x600)
EDAF6111 Gray 1 55.1 dB 82 m^3/h Wall-Mount E-Series, ESN 600mm deep and END 800x600
EDAF6112 Black 1 55.1 dB 82 m^3/h Wall-Mount E-Series, ESN 600mm deep and END 800x600
EDAF6121 Gray 2 57.8 dB 109 m^3/h Wall-Mount E-Series, ESN 600mm deep and END 800x600
EDAF6122 Black 2 57.8 dB 109 m^3/h Wall-Mount E-Series, ESN 600mm deep and END 800x600
EDAF6131 Gray 3 59 dB 139 m^3/h Wall-Mount E-Series, ESN 600mm deep and END 800x600
EDAF6132 Black 3 59 dB 139 m^3/h Wall-Mount E-Series, ESN 600mm deep and END 800x600
