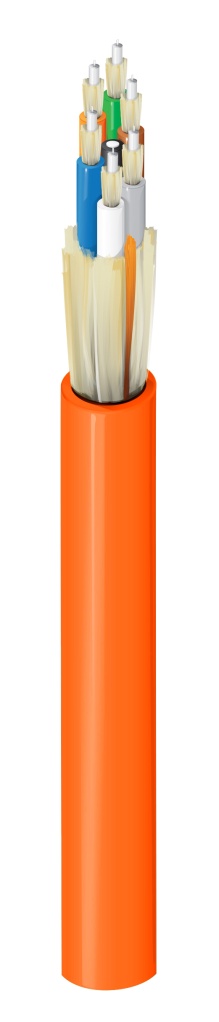

FI1B006PB

Indoor Plenum OM1 Breakout 6F 2mm Sub-Units Orange

FX Indoor OM1 Breakout 6 Fibers OFNP Sub-Units (2.0MM) Orange Jacket

Request Quote

Share

Get Product Alerts

Specifications

Report An Error

Suitable Applications	Horizontal Backbone

Fiber Type	OM1
Fiber Core Diameter	62.5/125μm µm
Fiber Diameter	250 µm
Buffer Material	PVC - Polyvinyl Chloride
Buffer Diameter	900 μm µm
Fiber Count	6
Fiber Color Coding	TIA-598-D

Number of Active Subunits	6
Fibers Per Subunit	1
Subunit Diameter	0.078 in (2.0 mm)
Subunit Strength Members	Aramid yarns
Central Strength Member	Upjacketed GRP
Core Wrap	Nomex Tape

Strength Member	Aramid Yarns
Jacket Material	PVC - Polyvinyl Chloride
Nom. Diameter	0.309 in (7.9 mm)
Color	Orange
Number of Ripcords	2

Wavelength	850 nm	1300 nm
Max. Attenuation	3.25 dB/km	1.0 dB/km
1 Gigabit Ethernet Performance	300 m	550 m
10 Gigabit Ethernet Performance	33 m	--
Min. Restricted Mode Launch	220 MHz.km	--
Min. Overfilled Launch (OFL) Bandwidth	200 MHz.km	500 MHz.km

Min. Bend Radius During Installation	15x Cable OD
Min. Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	1330 N (300 lbf)
Max. Tensile Strength During Operation	400 N (90 lbf)
Crush Resistance	100 N/cm

Bulk Cable Weight	15 lbs/kft (23 kg/km)

Installation Temperature Range	-0°C to +60°C
Operating Temperature Range	-0°C to +70°C
Storage Temperature Range	-40°C to +70°C

Environmental Suitability	Indoor
Sustainability	CA Prop 65, Product Lens™
Flammability / Reaction to Fire	OFNP, FT6
ICEA Compliance	S-83-596
TIA/EIA Compliance	ANSI/ICEA S-83-596

Update and Revision	Revision Number: 0.74 Revision Date: 03-27-2024

Part Numbers

Item #	Color	Putup Type	UPC
FI1B006PB	Orange	Reel	612825369547
