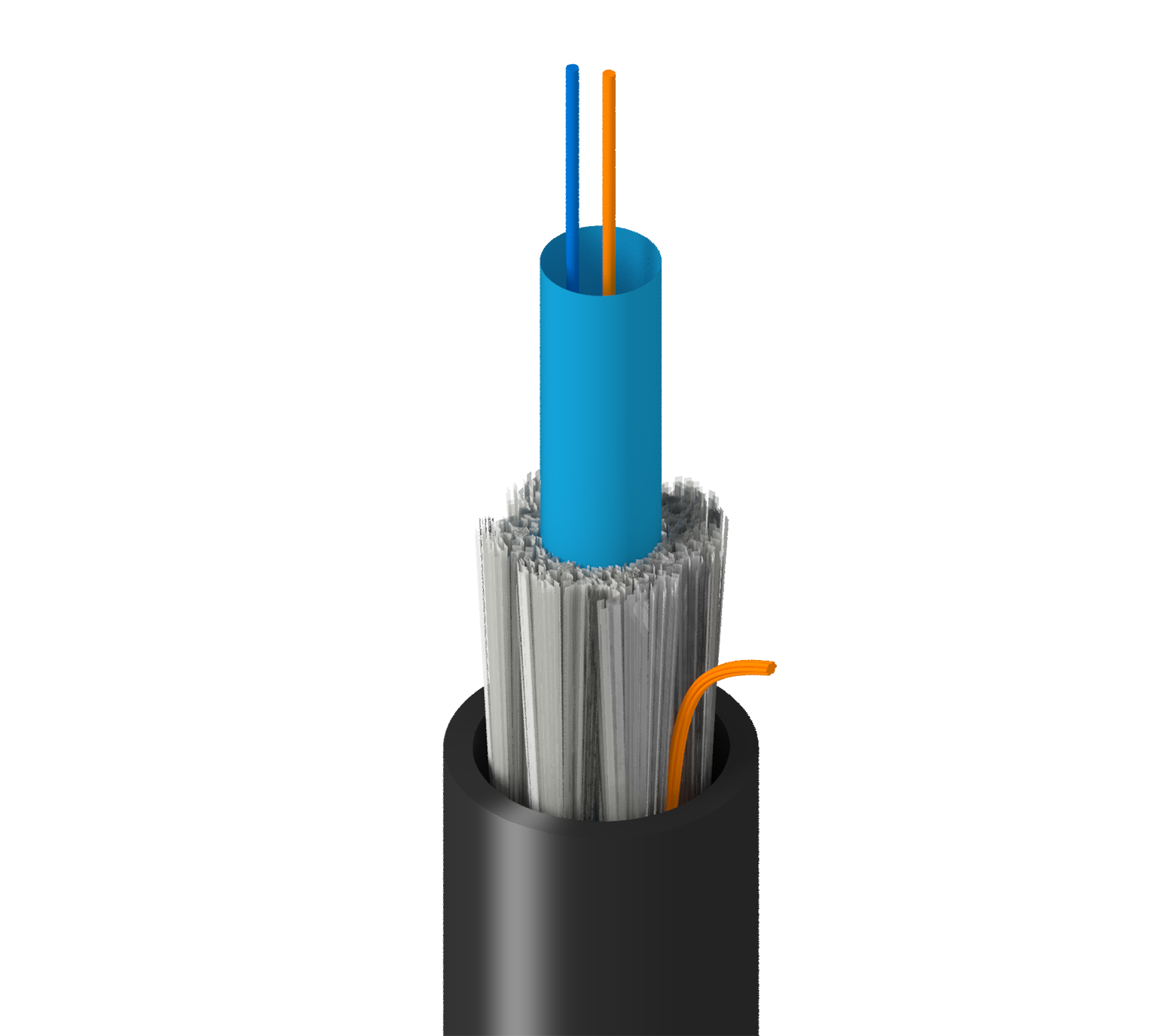

FS2C002N0

Outdoor Central Loose Tube OM2 2 Fibers

FX Outdoor Central Loose Tube OM2 2 Fibers OSP Non-Unitized Black

Request Quote

Share

Get Product Alerts

Specifications

Report An Error

Product Category	Central Loose Tube
Suitable Applications	Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Outdoor & Wet Locations, Aerial (Lashed)

Fiber Type	OM2
Fiber Core Diameter	50/125 µm
Fiber Diameter	250 µm
Fiber Count	2
Fiber Color Coding	TIA-598-D

Number of Active Subunits	1
Number of Fillers	0
Fibers Per Subunit	2
Subunit Waterblocking	Gel Filled
Subunit Diameter	0.150 in (3.8 mm)
Subunit Color	Blue
Subunit Strength Members	Aramid Yarns
Core Wrap	Waterblocking tape
Cable Core Waterblocking	Gel Filled

Strength Member	Fiberglass Yarns
Jacket Material	PE - Polyethylene
Nom. Diameter	0.315 in (8.0 mm)
Color	Black
Number of Ripcords	1

Wavelength	850 nm	953 nm	1300 nm
Max. Attenuation	3.0 dB/km		1.0 dB/km
1 Gigabit Ethernet Performance	600 m	-	600 m
10 Gigabit Ethernet Performance	82 m	-	-
Min. Restricted Mode Launch	950 MHz.km	-	500 MHz.km
Min. Effective Modal Bandwidth (EMB)			-
Min. Overfilled Launch (OFL) Bandwidth	700 MHz.km	-	500 MHz.km

Min. Bend Radius During Installation	15x Cable OD
Min. Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	2670 N (600 lbf)
Max. Tensile Strength During Operation	800 N (180 lbf)
Crush Resistance	220 N/cm

Bulk Cable Weight	33 lbs/kft (49 kg/km)

Installation Temperature Range	-30C to +60C
Operating Temperature Range	-40C to +70C
Storage Temperature Range	-40C to +70C

Environmental Suitability	Outdoor
Sustainability	CA Prop 65
ICEA Compliance	S-87-640
TIA/EIA Compliance	ANSI/ICEA S-87-640

Update and Revision	Revision Number: 0.359 Revision Date: 04-01-2024

Part Numbers

Item #	Color	UPC
FS2C002N0	Black	612825370130
