FS2C010N0

Outdoor Central Loose Tube OM2 10 Fibers

FS2C010N0

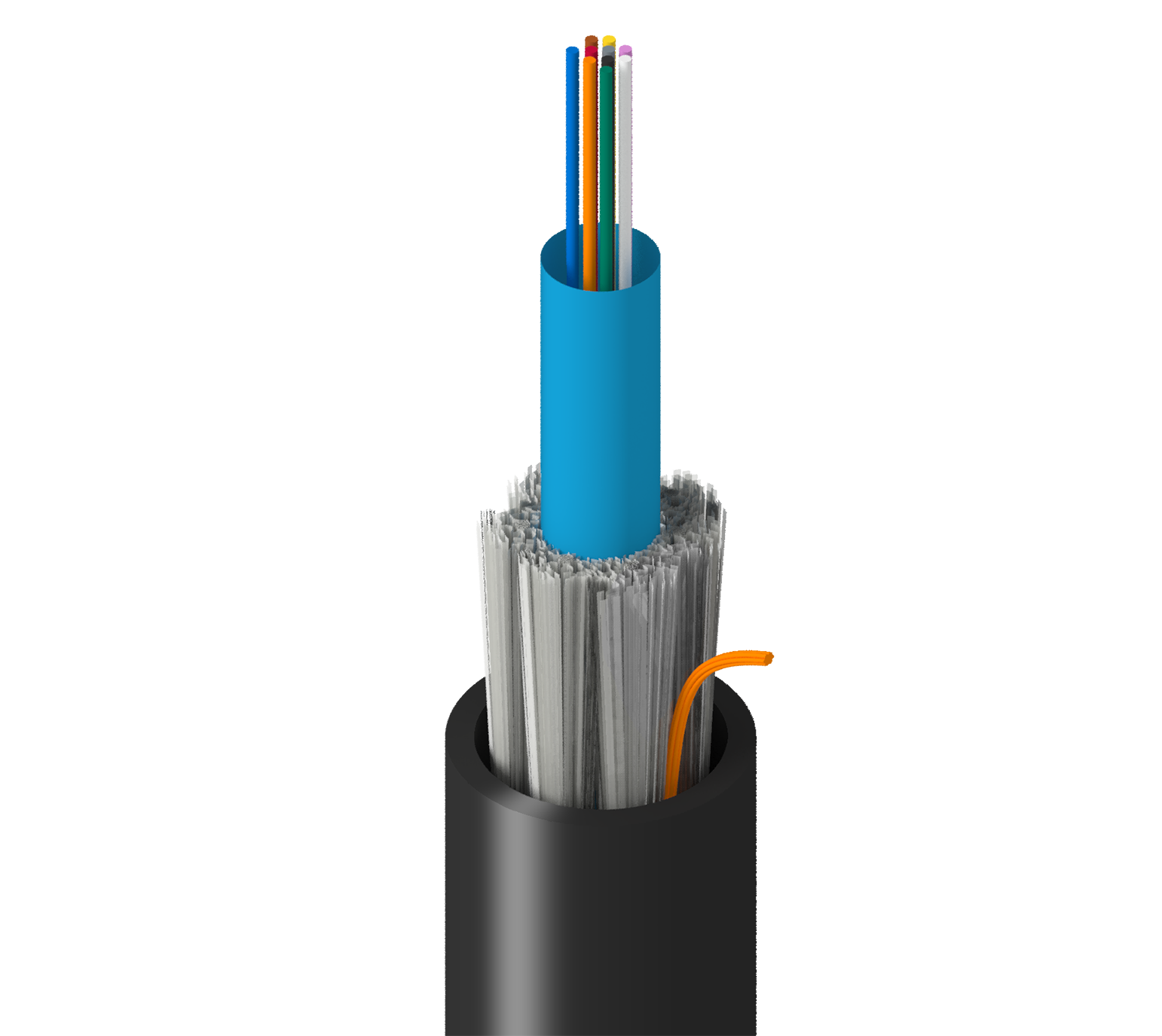

FX Outdoor Central Loose Tube OM2 10 Fibers OSP Non-Unitized Black
Get Product Alerts
Specifications
Product Overview

Product Category

Central Loose Tube

Suitable Applications

Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Outdoor & Wet Locations, Aerial (Lashed)

Fiber Specifications

Fiber Type

OM2

Fiber Core Diameter

50/125 µm

Fiber Diameter

250 µm

Fiber Count

10

Fiber Color Coding

TIA-598-D

Cable Construction

Number of Active Subunits

1

Number of Fillers

0

Fibers Per Subunit

10

Subunit Waterblocking

Gel Filled

Subunit Color

Blue

Subunit Strength Members

Aramid Yarns

Core Wrap

Waterblocking tape

Outer Jacket Specifications

Strength Member

Fiberglass Yarns

Material

PE - Polyethylene

Color

Black

Number of Ripcords

1

Optical Characteristics
Wavelength 850 nm 953 nm 1300 nm
Max. Attenuation 3.0 dB/km 1.0 dB/km
1 Gigabit Ethernet Performance 600 m - 600 m
10 Gigabit Ethernet Performance 82 m - -
Min. Restricted Mode Launch  950 MHz.km - 500 MHz.km
Min. Overfilled Launch (OFL) Bandwidth 700 MHz.km - 500 MHz.km
Mechanical Characteristics

Min. Bend Radius During Installation

15x Cable OD

Min. Bend Radius During Operation

10x Cable OD

Crush Resistance

220 N/cm

Temperature Range

Installation Temp Range

-30C to +60C

Operating Temp Range

-40C to +70C

Storage Temp Range

-40C to +70C

Standards and Compliance

Environmental Suitability

Outdoor

Sustainability

CA Prop 65, Product Lens™, Environmental Product Declaration (EPD) Available

ICEA Compliance

S-87-640

TIA/EIA Compliance

ANSI/ICEA S-87-640

History

Update and Revision

Revision Number: 0.77 Revision Date: 03-16-2021
