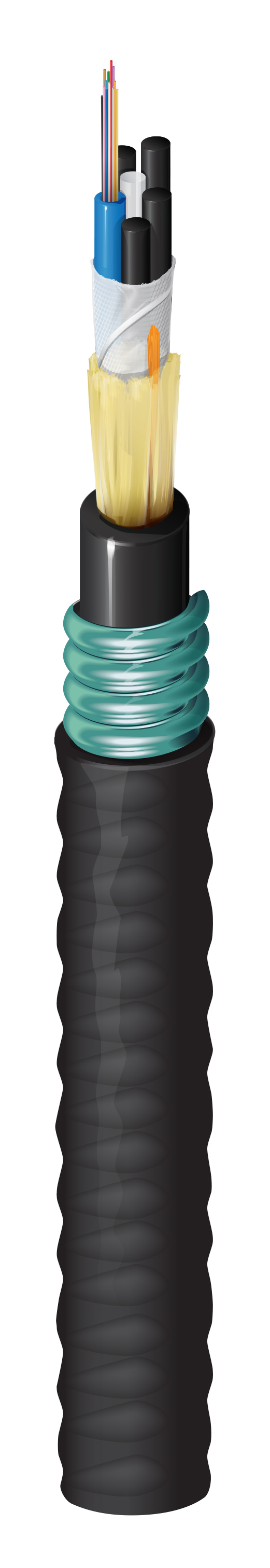

FS4H0126G

Heavy Duty Loose Tube OM4 12F OSP Armor Unitized

Outdoor Heavy Duty Loose Tube OM4 12 Fibers OSP Corrugated Steel Tape Armor Sub-Units(12F) Gel Black

Request Quote

Share

Get Product Alerts

Specifications

Report An Error

Print Legend	BELDEN 12XOM4-BIF OUTDOOR ARMORED LOOSE TUBE CABLE FS4H0126G --- ROHS (LOT NUMBER) (MMYYYY DATE CODE) (SEQUENTIAL NUMBER)
Environmental Space	Outdoor

Fiber Count
12

Central Strength Member	GRP
Cable Core Waterblocking	Waterblock Tape

Number of Active Subunits	1
Number of Subunit Positions	5
Fibers Per Subunit	12

Number of Jackets	Double Jacket
Type of Armor	Corrugated Steel Tape

Number of Ripcords	2
Color	Black
Material	PE - Polyethylene

Nominal Diameter
0.61 in (15.5 mm)

Number of Ripcords	2

Effective Modal Bandwidth (EMB)	4700 MHz-km / 500 MHz-km
Fiber Core Diameter	50/125μm
Max. Attenuation at 1300 nm	1.0 dB/km
Max. Attenuation at 850 nm	3.0 dB/km
Wavelength	850 nm / 1300 nm
10 Gigabit Ethernet Performance	550 m / 300 m
1 Gigabit Ethernet Performance	- / 550 m
Min. Overfilled Launch (OFL) Bandwidth	3500 MHz-km /550 Mhz-km

Crush Resistance	440

Description	Requirement/Value
Cable Min. Bend Radius Installation (Short Term)	20x Cable OD
Cable Min. Bend Radius Operation (Long Term)	15x Cable OD
Cable Impact Resistance	4.4 N/cm

UL Rating/Flame Test	OSP

TIA/EIA Compliance	ANSI/ICEA S-87-640
RoHS	Yes

Update and Revision	Revision Number: 0.63 Revision Date: 03-27-2024

Part Numbers

Item #	Color	UPC
FS4H0126G	Black	612825372158
