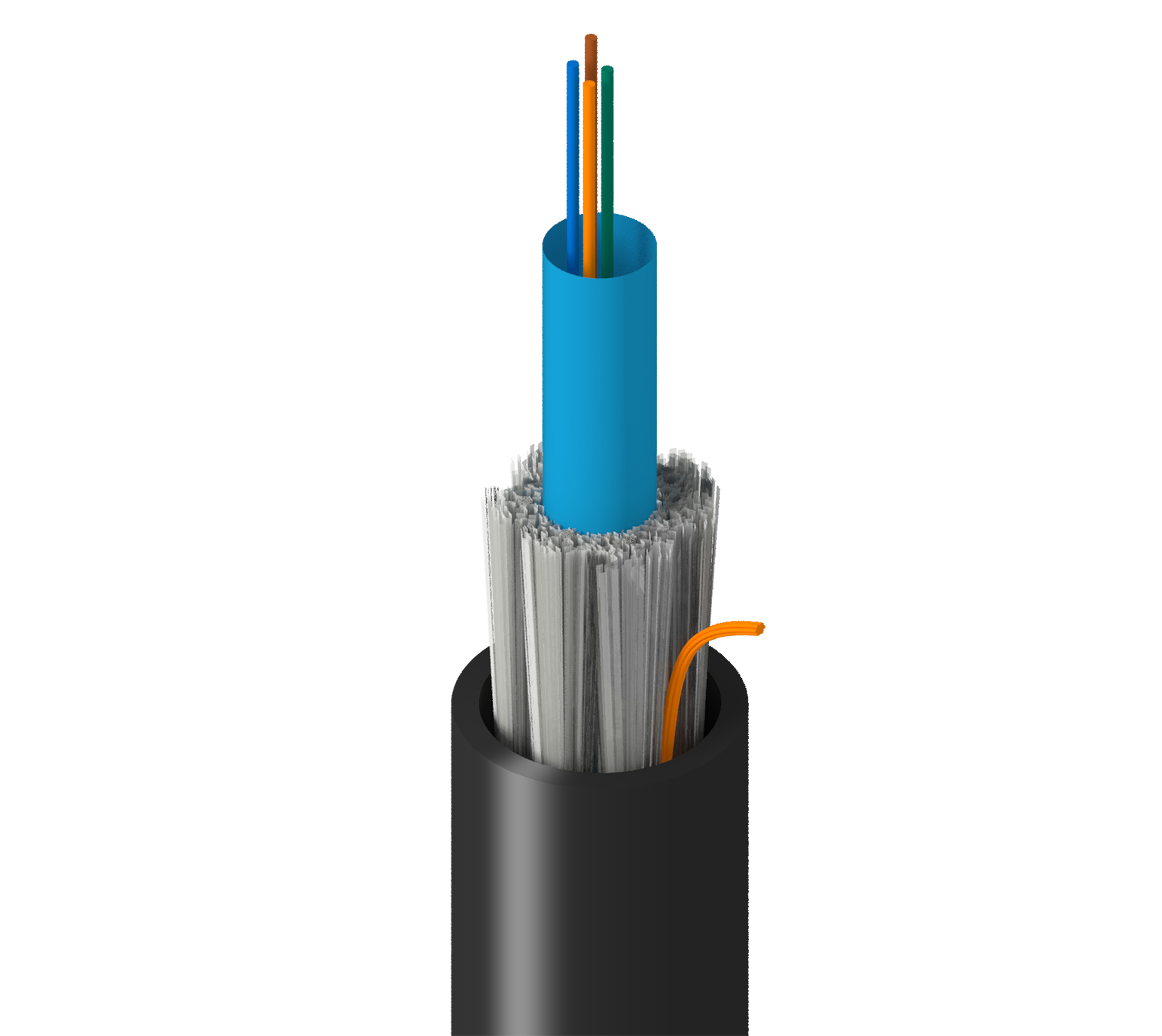

FSSC004N0

OUTDOOR CENTRAL LOOSE TUBE OS2 4 FIBERS

FX OUTDOOR CENTRAL LOOSE TUBE OS2 4 FIBERS OSP NON-UNITIZED BLACK

Request Quote

Share

Get Product Alerts

Specifications

Report An Error

Product Category	Central Loose Tube
Suitable Applications	Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Outdoor & Wet Locations, Aerial (Lashed)

Fiber Type	OS2
Fiber Core Diameter	8.2/125 µm
Fiber Diameter	250 µm
Fiber Count	4
Fiber Color Coding	TIA-598-D

Number of Active Subunits	1
Number of Fillers	0
Fibers Per Subunit	4
Subunit Waterblocking	Gel Filled
Subunit Diameter	0.150 in (3.8 mm)
Subunit Color	Blue
Subunit Strength Members	Aramid Yarns
Core Wrap	Waterblocking tape
Cable Core Waterblocking	Gel Filled

Strength Member	Fiberglass Yarns
Jacket Material	PE - Polyethylene
Nom. Diameter	0.315 in (8.0 mm)
Color	Black
Number of Ripcords	1

Wavelength	953 nm	1310 nm	1550 nm
Max. Attenuation		0.40 dB/km	0.30 dB/km
Mode Field Diameter		9.2 µm	10.4 µm
1 Gigabit Ethernet Performance	-	5000 m	-
10 Gigabit Ethernet Performance		10,000 m	40,000 m

Min. Bend Radius During Installation	15x Cable OD
Min. Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	2670 N (600 lbf)
Max. Tensile Strength During Operation	800 N (180 lbf)
Crush Resistance	220 N/cm

Bulk Cable Weight	33 lbs/kft (49 kg/km)

Installation Temperature Range	-30C to +60C
Operating Temperature Range	-40C to +70C
Storage Temperature Range	-40C to +70C

Environmental Suitability	Outdoor
Sustainability	CA Prop 65
ICEA Compliance	S-87-640
TIA/EIA Compliance	ANSI/ICEA S-87-640

Update and Revision	Revision Number: 0.241 Revision Date: 04-01-2024
