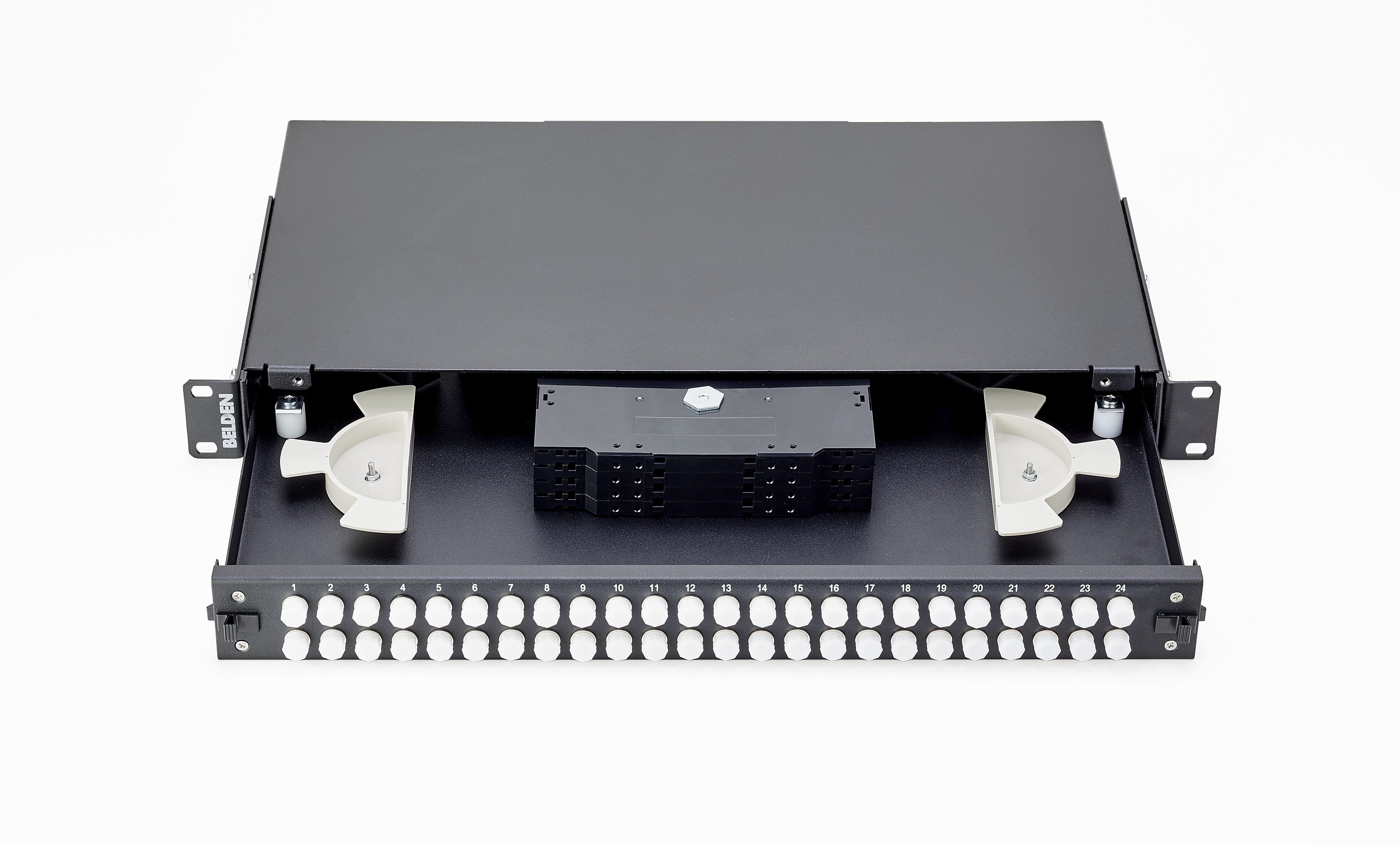

FX-EASE PP 1U 48F MM FC

1U FX@EASE 48-port Simplex FC MM Patch Panel

1U FiberExpress@EASE 48-port Simplex FC MM Termination/Splice Patch Panel

Request Quote

Share

Get Product Alerts

Specifications

Report An Error

Environmental Space	Indoor
Suitable Applications	FiberExpress@ease Solutions, Backbone, Telecommunications Room, Main Distribution Room, Workstation Area

Weight	2.5 kg
Height	44 mm
Width	482 mm
Depth	251.5 mm

Max Capacity	48

Description

Front Connection	Flush
Footprint/Type	FC

Operating Temperature Range	-10°C To +60°C
Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-10°C To +60°C

Description	Material	Color
Panel	Textured powder coated Steel	Black
Fiber Adapter	Metal, Fully loaded	Metal
Accessories inside panel	4 pcs splice trays/holders, cable management, 2 pcs Cable glands, angled cable entry brackets

TIA/EIA Compliance	ISO/IEC 11801-1:2017
MII Order #39 (China RoHS)	EUP 50

Related Parts	Fiber cables, Fiber patch cords, Fiber cable assemblies

Packaging	Individually packaged in a box.

Update and Revision	Revision Number: 0.41 Revision Date: 09-25-2024

Part Numbers

Item #	Color	EAN
NN01407.MM48	Black	8719605186126
