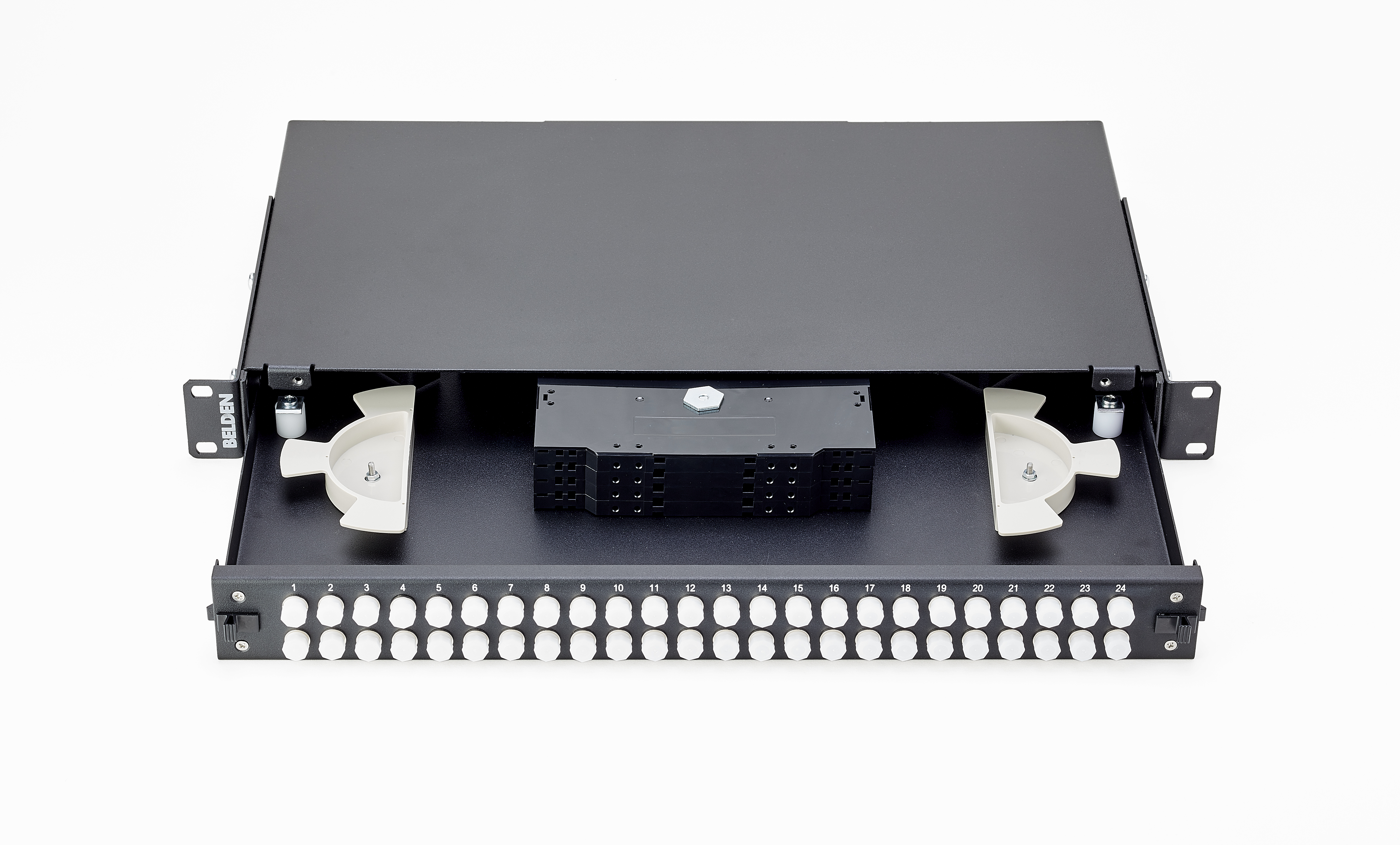

FX-EASE PP 1U 48F MM ST

1U FX@EASE 48-port Simplex ST&FC MM Patch Panel

...
1U FiberExpress@EASE 48-port Simplex ST MM Termination/Splice Patch Panel
Get Product Alerts
Specifications
Product Overview

Environmental Space

Indoor

Suitable Applications

FiberExpress@ease Solutions, Backbone, Telecommunications Room, Main Distribution Room, Workstation Area

Construction

Weight

2.500 kg

Height

44 mm

Width

482 mm

Depth

251.5 mm

Physical Specifications

Max Capacity

48

Mechanical Characteristics
Mechanical Tests
Description

Front Connection

Flush

Footprint/Type

ST

Temperature Range

Operating Temp Range

-10°C To +60°C

Installation Temp Range

-10°C To +60°C

Storage Temp Range

-10°C To +60°C

Product Material
Materials
Description Material Color
Panel Textured powder coated Steel Black
Fiber Adapter Metal, Fully loaded Metal
Accessories inside panel 4 pcs splice trays/holders, cable management, 2 pcs Cable glands, angled cable entry brackets
Standards

TIA/EIA Compliance

ISO/IEC 11801-1:2017

MII Order #39 (China RoHS)

EUP 50

Related Parts

Fiber cables, Fiber patch cords, Fiber cable assemblies

Product Notes

Packaging

Individually packaged in a box.

History

Update and Revision

Revision Number: 0.47 Revision Date: 05-25-2021

Part Numbers
Item # Color EAN
NN01406.MM48 Black 8719605128317
