Product Number: FX-EASE PP 1U 48F SM SC

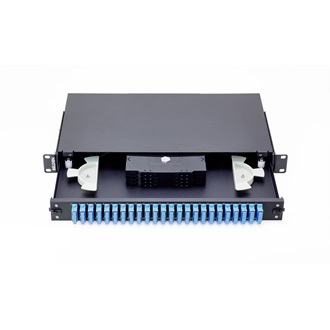

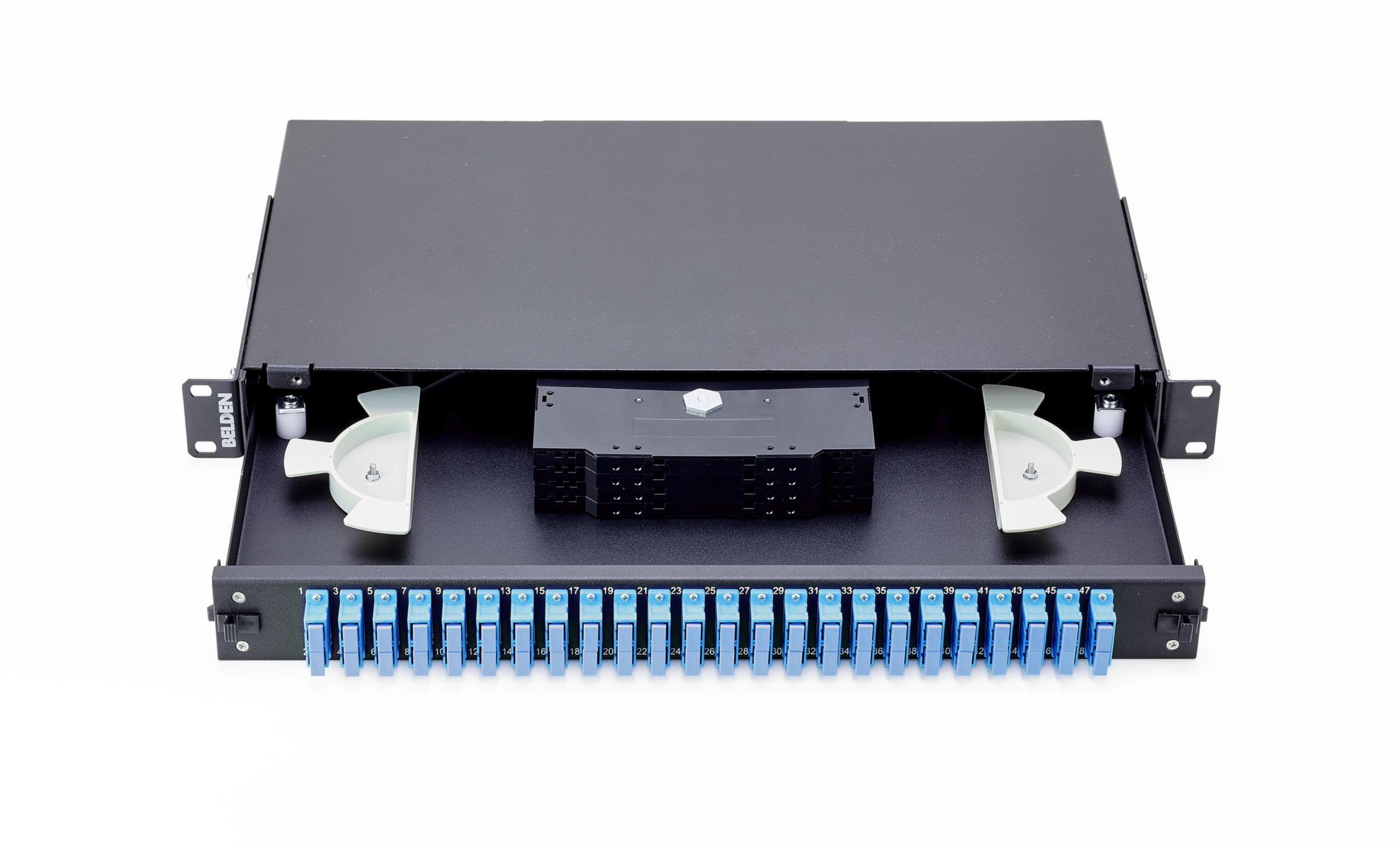

1U FX@EASE 24-port Duplex SC SM Patch Panel - without pigtails
1U FiberExpress@EASE 24-port Duplex SC OS2 Termination/Splice Patch Panel - without pigtails
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Environmental Space |
Indoor |
|---|---|
|
Suitable Applications |
FiberExpress@ease Solutions, Backbone, Telecommunications Room, Main Distribution Room, Workstation Area |
Construction
|
Weight |
2.5 kg |
|---|---|
|
Height |
44 mm |
|
Width |
482 mm |
|
Depth |
251.5 mm |
Physical Specifications
|
Max Capacity |
48 |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
|
Front Connection |
Flush |
|---|---|
|
Footprint/Type |
SC |
Temperature Range
|
Operating Temperature Range |
-10°C To +60°C |
|---|---|
|
Installation Temperature Range |
-10°C To +60°C |
|
Storage Temperature Range |
-10°C To +60°C |
Product Material
Materials
| Description | Material | Color |
|---|---|---|
| Panel | Textured powder coated Steel | Black |
| Fiber Adapter | Plastic, Fully loaded with 24 SC duplex adapters | Blue |
| Accessories inside panel | 4 pcs splice trays/holders, cable management, 2 pcs Cable glands, angled cable entry brackets |
Standards
|
TIA/EIA Compliance |
ISO/IEC 11801-1:2017 |
|---|---|
|
MII Order #39 (China RoHS) |
EUP 50 |
Related Part Numbers
|
Related Parts |
Fiber cables, Fiber patch cords, Fiber cable assemblies |
|---|
Product Notes
|
Packaging |
Individually packaged in a box. |
|---|
History
|
Update and Revision |
Revision Number: 0.36 Revision Date: 09-25-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.36 Revision Date: 09-25-2024 |
|---|
Part Numbers
| Item # | Color | EAN |
|---|---|---|
| NN01405.SM24 | Black | 8719605103963 |
