HDSD0060216LJ

Indoor/Outdoor Hybrid Copper-Fiber Cable, OS2, 6 Distribution Fibers, #16-2c, CMR-OF

HDSD0060216LJ

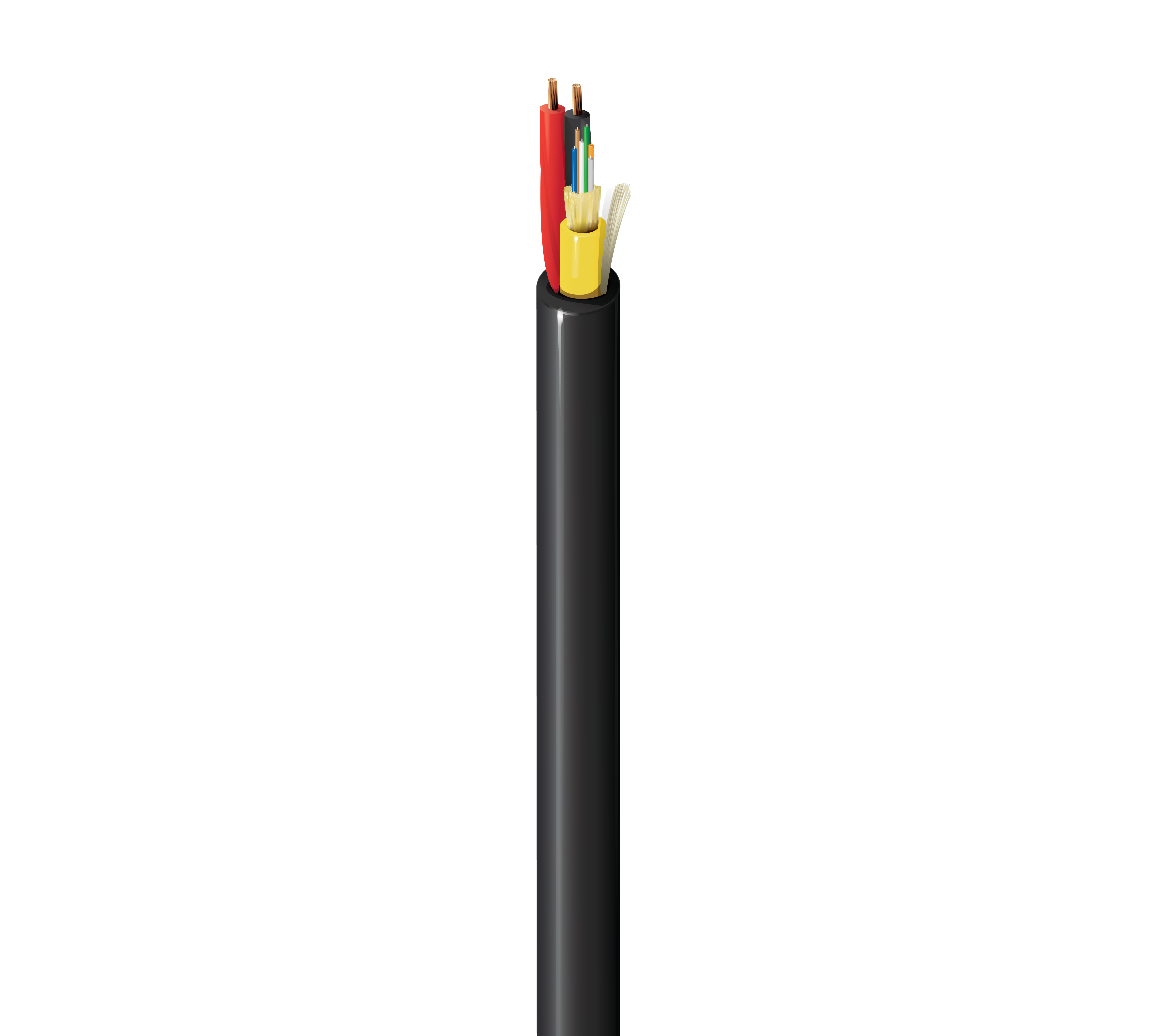

FX HYBRID INDOOR/OUTDOOR, OS2, DISTRIBUTION, 6 FIBERS, 02 x 16AWG, CMR-LS-OF, SUB-UNIT 4.8MM (6F X 900UM), BLACK JACKET
Get Product Alerts
Specifications
Product Overview

Environmental Space

Indoor/Outdoor

Suitable Applications

Distributed Antenna Systems (DAS), Passive Optical Network (PON), Wireless Access Points (WAP), Security (Cameras)

Construction
Fiber Cable Construction
Fiber Type Fiber Count Subunit Color
OS2 6 Black

Fiber Color Coding

TIA-598-D

Buffer Specification
Buffer Material Buffer Diameter
PVC - Polyvinyl Chloride 900 µm

Bulk Cable Weight

83 lbs/kft (124 kg/km)

SubUnit Specifications

Fibers Per Subunit

6

Jacket Specifications

Conductor Count

2

Outer Jacket
Material Nominal Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.422 in (10.7mm)

Color

Black

Nom. Diameter

0.448 in (11.4 mm)

Number of Ripcords

1

Optical Characteristics

Mode Field Diameter

9.2 μm

Fiber Core Diameter

8.2/125 µm

Max. Attenuation at 1310 nm

0.50 dB/km

Max. Attenuation at 1550 nm

0.50 dB/km

Mechanical Characteristics

Crush Resistance

220 N/cm

Mechanical Tests
Description Requirement/Value
Cable Min. Bend Radius Installation (Short Term) 15x Cable OD
Cable Min. Bend Radius Operation (Long Term) 10x Cable OD
Cable Max. Tensile Strength Installation (Short Term) Error
Cable Max. Tensile Strength Operation (Long Term) Error
Temperature Range

Operating Temp Range

-40°C to +70°C

Installation Temp Range

-10°C to +60°C

Storage Temp Range

-40°C to +70°C

Standards

UL Rating/Flame Test

LSZH/Riser

NEC/(UL) Compliance

CMR-OF

TIA/EIA Compliance

ICEA S-120-742

REACH

Complies

RoHS

Complies

History

Update and Revision

Revision Number: 0.12 Revision Date: 06-18-2021
