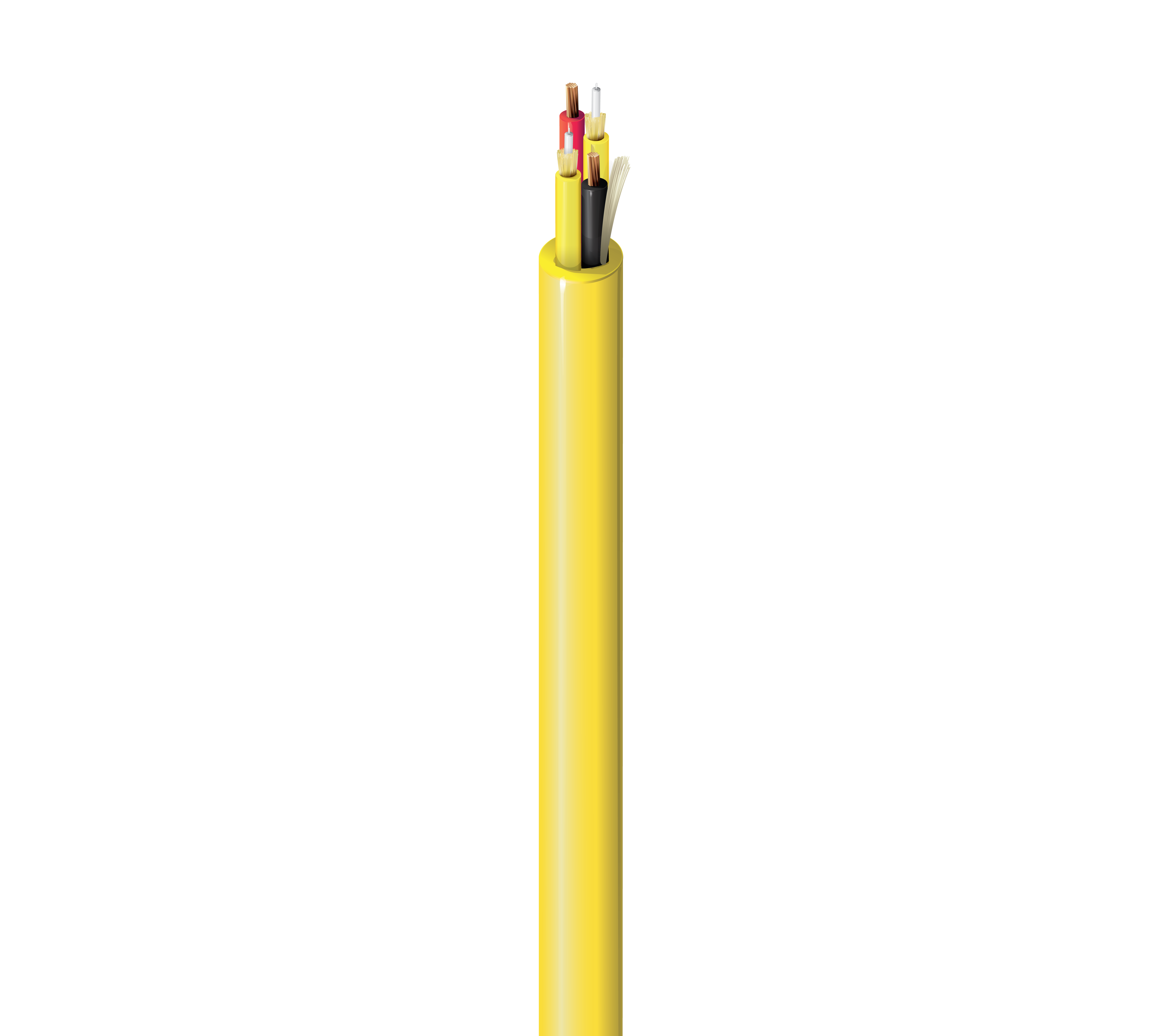

HISB0020218PB

Indoor Hybrid Copper-Fiber Cable, OS2, 2 Breakout Fibers, 2.0mm Sub-units, #18-2c, CMP-OF

FX HYBRID INDOOR, OS2, BREAKOUT, 2 FIBERS, 02 x 18AWG, CMP-OF, SUB-UNIT 2.0MM (1F X 900UM), YELLOW JACKET

Request Quote

Share

Get Product Alerts

Specifications

Report An Error

Suitable Applications	Distributed Antenna Systems (DAS), Passive Optical Network (PON), Wireless Access Points (WAP), Security (Cameras)

Fiber Type	OS2
Fiber Core Diameter	8.2/125 µm
Buffer Material	PVC - Polyvinyl Chloride
Buffer Diameter	900 µm
Fiber Count	2
Fiber Color Coding	TIA-598-D

Subunit Strength Members	Aramid yarns
Fibers Per Subunit	1
Nom. Jacket Diameter	0.078 in. (2.0 mm)
Jacket Color	Yellow

AWG Size	18
Number of Strands	19x30
Conductor Type	TC - Tinned Copper
Number of Conductors	2
Insulation Material	PVC
Nom. Insulation Diameter	0.072 in. (1.8 mm)

Jacket Material	PVC - Polyvinyl Chloride
Nom. Diameter	0.257 in (6.6 mm)
Color	Yellow
Number of Ripcords	1

Wavelength	1310 nm	1550 nm
Max. Attenuation	0.50 dB/km	0.50 dB/km
Mode Field Diameter	9.2 µm	10.4 µm
1 Gigabit Ethernet Performance	5000 m	--
10 Gigabit Ethernet Performance	10,000 m	40,000 m

Min. Bend Radius During Installation	15x Cable OD
Min. Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	1335 N (300 lbf)
Max. Tensile Strength During Operation	400 N (90 lbf)
Crush Resistance	220 N/cm
Bulk Cable Weight	38 lbs/kft (57 kg/km)

Installation Temperature Range	0⁰C to +60⁰C
Operating Temperature Range	0⁰C to +70⁰C
Storage Temperature Range	-40⁰C to +70⁰C

Environmental Suitability	Indoor
Sustainability	CA Prop 65
NEC / UL Compliance	CMP-OF
ICEA Compliance	S-120-742
TIA/EIA Compliance	ICEA S-120-742

Update and Revision	Revision Number: 0.19 Revision Date: 02-15-2024
