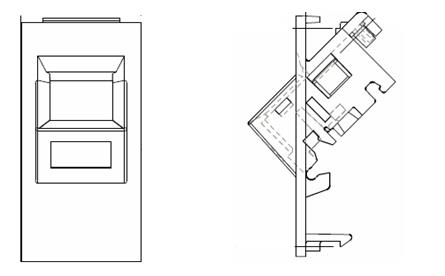

INSERT EUROMOD FACEPLATE ANGL

Insert Euromod Outlet Angled

...
EUROMOD (50x25mm) Modular Outlet Insert for Faceplate, Adapter Angled, 1 Port
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800,3600, 2400 and 1200

Physical Characteristics (Overall)

Height

50 mm

Width

25 mm

Depth

31 mm

Front Connection

Angled

Packaging

Individually packaged in a plastic bag.

Connectors
Materials
Description Material
Insert Plastic - PC-ABS, UL94V-0
Construction and Dimensions

Max Capacity

1 Port

Mechanical Characteristics

Footprint/Type

KeyConnect & MDVO

Plug /Jack Compatibility

RJ45

Standards

TIA/EIA Compliance

ISO/IEC 11801-1:2017

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU Directive 2002/95/EC (RoHS)

Yes

MII Order #39 (China RoHS)

EUP 50

Flammability, LS0H, Toxicity Testing

UL Flammability

UL-94V0

Plenum/Non-Plenum

Related Parts

Compatible with UTP KeyConnect, UTP MDVO and UTP and Shielded REV Connect Multimedia Modules for 10GX, CAT6+ and CAT5E.

History

Update and Revision

Revision Number: 0.27 Revision Date: 05-25-2021

Part Numbers
Item # Color
NN01541 Black
NN01553 Grey
NN01529 White
