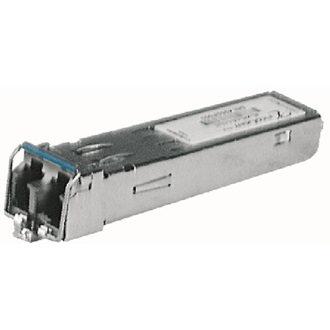

M-FAST SFP-LH/LC EEC
Port type and quantity
1 x 100 BASE-FX with LC connector
Single mode fiber (LH) 9/125 µm (long haul transceiver)
47 - 104 km, 10 - 29 dB link budget at 1550 nm, A = 0.25 dB/km, 2 dB Reserve, D = 19 ps/(nm x km)
Multimode fiber (MM) 50/125 µm
Multimode fiber (MM) 62.5/125 µm
power supply via the switch
optical input- and output power, transceiver temperature
MTBF (Telecordia SR-332 Issue 3) @ 25°C
Relative humidity (non-condensing)
20 mm x 18 mm x 50 mm
IEC 60068-2-6 vibration
1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock
15 g, 11 ms duration, 18 shocks
EN 61000-4-2 electrostatic discharge (ESD)
6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field
10 V/m (80 - 1000 MHz)
EN 61000-4-4 fast transients (burst)
2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage
power line: 2 kV (line/earth), 1 kV (line/line), 1kV data line
EN 61000-4-6 Conducted Immunity
3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)
EN 55032 Class A
FCC CFR47 Part 15
FCC 47CFR Part 15, Class A
Safety of industrial control equipment
Update and Revision
Revision Number: 0.36 Revision Date: 04-08-2022
