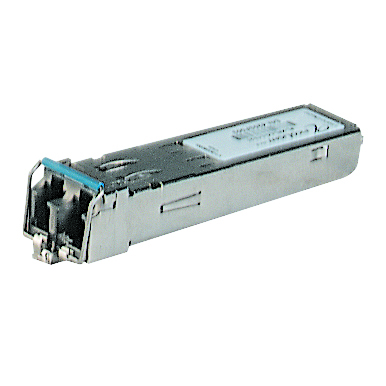

M-SFP-LH/LC transceiver

SFP Fiberoptic Gigabit Ethernet Transceiver.

***no longer available*** SFP Fiberoptic Gigabit Ethernet Transceiver.

Request Quote

Share

Get Product Alerts

Specifications

Report An Error

Type	M-SFP-LH/LC
Name	M-SFP-LH/LC
Port type and quantity	1 x 1000BASE-LX with LC connector

Single mode fiber (LH) 9/125 µm (long haul transceiver)	16 -80 km; 6 - 22 dB link budget at 1550 nm; A = 0.25 dB/km, 2 dB reserve, D = 19 ps/(nm x km)

Operating Voltage	power supply via the switch
Power consumption	1 W

Diagnostics	optical input and output power, transceiver temperature

Operating temperature	0-+60 °C
Storage/transport temperature	-25-+70 °C
Relative humidity (non-condensing)	10-95 %
Dimensions (WxHxD)	20 mm x 18 mm x 50 mm
Weight	40 g
Mounting	SFP slot
Protection class	IP 20

IEC 60068-2-6 vibration	1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock	15 g, 11 ms duration, 18 shocks

EN 61000-4-2 electrostatic discharge (ESD)	6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field	10 V/m (80 - 1000 MHz)
EN 61000-4-4 fast transients (burst)	2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage	power line: 2 kV (line/earth), 1 kV (line/line), 1kV data line
EN 61000-4-6 Conducted Immunity	3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)

EN 55032	EN 55032 Class A
FCC CFR47 Part 15	FCC 47CFR Part 15, Class A

Safety of industrial control equipment	cUL 60950-1

Update and Revision	Revision Number: 0.36 Revision Date: 06-19-2023

Part Numbers

Item #	Type
943042501	M-SFP-LH/LC (ABB)
