NN00097

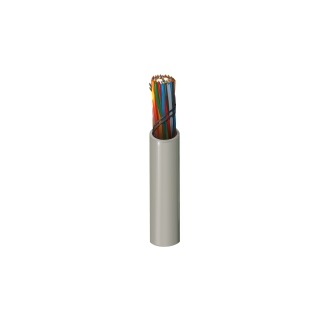

Category 3 Cable, 25 Pair, U/UTP, LSZH Outdoor

...
Category 3 Premise Horizontal Cable (16MHz), 25-pair, 24 AWG, HDPE insulation, U/UTP, LSZH jacket
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Backbone cable; Support current and future Category 3 applications, suitable for outdoor use

Construction Details
Conductor
Size Stranding Material Number of Pairs Number of Element
24 AWG Solid BC - Bare Copper 25 50
Insulation
Material Nom. Insulation Diameter Color Code
PE - Polyethylene 0.88 mm (0.035 in) White & Blue, White & Orange, White & Green, White & Brown, White & Grey, Red & Blue, Red & Orange, Red & Green, Red & Brown, Red & Grey, Black & Blue, Black & Orange, Black & Green, Black & Brown, Black & Grey, Yellow & Blue, Yellow & Orange, Yellow & Green, Yellow & Brown, Yellow & Grey, Violet & Blue, Violet & Orange, Violet & Green, Violet & Brown, Violet & Grey

Table Notes

Telecom Color Order

Cable Core
Description
2+8+15 pairs twisted in concentric layers and covered with a polyester foil
Outer Jacket
Material Nom. Diameter Ripcord
LSZH - Low Smoke Zero Halogen (Flame Retardant) 12.2 mm (0.480 in) Yes

Overall Cable Diameter (Nominal)

12.2 mm (0.480 in)

Electrical Characteristics
Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
93.8 Ohm/km 66 pF/m (20 pF/ft) 330 pF/100m 100 Ohm
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. SRL (Structural Return Loss) [dB]
0.772 2.2 dB/100m 45 43 12
1 2.6 dB/100m 44 41 12
4 5.6 dB/100m 34 32 12
8 8.5 dB/100m 29 27 12
10 9.7 dB/100m 28 26 12
16 13.1 dB/100m 25 23 10
Voltage
Voltage Rating
72 V
Mechanical Characteristics
Temperature
Operating Installation
-30°C to +60°C 0°C To +50°C
Bend Radius
Stationary Min. Installation Min.
61 mm (2.4 in) 183 mm
Standards and Compliance

Environmental Suitability

Outdoor

Data Category

Category 3

ISO/IEC Compliance

ISO/IEC 11801-1

European Directive Compliance

EU CE Mark

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system.

History

Update and Revision

Revision Number: 0.213 Revision Date: 11-29-2021

Part Numbers
Item # Color Putup Type Length EAN
NN00097.00305 Gray Reel 305 m 8719605103482
NN00097.001000 Gray Reel 1,000 m 8719605103475
