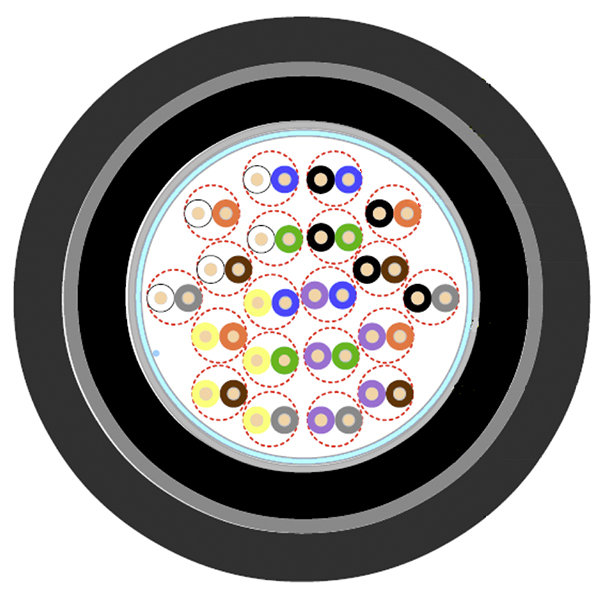

NN00102

Category 3 Cable, 25 Pair, U/UTP, LSZH Armoured Outdoor

...
Category 3 Premise Horizontal Cable (16MHz), 25-pair, 24 AWG, HDPE insulation, U/UTP, jelly filled cable core, PE inner jacket, Armouring, LSZH jacket
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Backbone cable; Support current and future Category 3 applications, suitable for outdoor use

Construction Details
Conductor
Size Stranding Material No. of Pairs No. of Elements
24 AWG Solid BC - Bare Copper 25 50
Insulation
Material Nom. Insulation Diameter Color Code Notes
PE - Polyethylene 1 mm (0.039 in) White & Blue, White & Orange, White & Green, White & Brown, White & Grey, Red & Blue, Red & Orange, Red & Green, Red & Brown, Red & Grey, Black & Blue, Black & Orange, Black & Green, Black & Brown, Black & Grey, Yellow & Blue, Yellow & Orange, Yellow & Green, Yellow & Brown, Yellow & Grey, Violet & Blue, Violet & Orange, Violet & Green, Violet & Brown, Violet & Grey HDPE

Table Notes

Telecom Color Order

Cable Core
Description
2+8+15 pairs twisted in concentric layers filled with jelly compound and covered with a crepe paper
Inner Jacket
Material Nom. Diameter Color
PE - Polyethylene 15.1 mm (0.594 in) Black
Outer Shield
Shield Type Material
Tape EquiBlock®
Armor
Armor Type & Material
DST - Double Steel Tape

Table Notes

FE/ZN tapes spirally wrapped

Outer Jacket
Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 21 mm (0.83 in)

Overall Cable Diameter (Nominal)

21 mm (0.83 in)

Electrical Characteristics
Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
93.8 Ohm/km 66 pF/m (20 pF/ft) 330 pF/100m 100 Ohm
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. SRL (Structural Return Loss) [dB]
0.772 2.2 dB/100m 45 43 12
1 2.6 dB/100m 44 41 12
4 5.6 dB/100m 34 32 12
8 8.5 dB/100m 29 27 12
10 9.7 dB/100m 28 26 12
16 13.1 dB/100m 25 23 10
Voltage
Voltage Rating
72 V DC
Mechanical Characteristics
Temperature
Operating Installation
-30°C to +60°C 0°C To +50°C
Bend Radius
Stationary Min. Installation Min.
105 mm (4.13 in) 315 mm

Bulk Cable Weight

510 kg/km

Standards and Compliance

Environmental Suitability

Outdoor

Data Category

Category 3

ISO/IEC Compliance

ISO/IEC 11801-1

European Directive Compliance

EU CE Mark

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system.

History

Update and Revision

Revision Number: 0.245 Revision Date: 12-12-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length EAN
NN00102.00500 Black Reel 500 m 8719605103598
