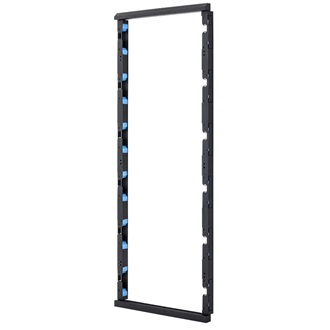

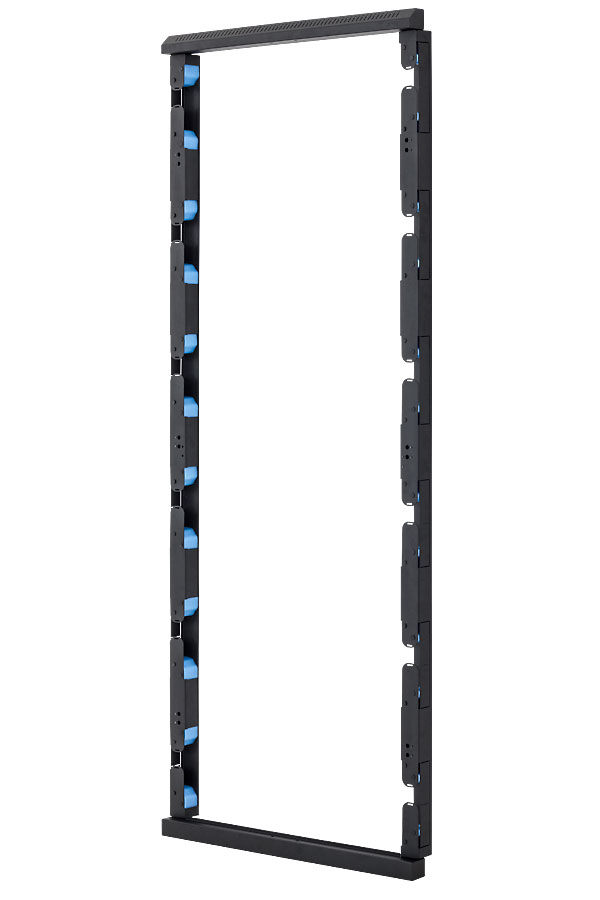

Product Number: PATCH FRAME E-SERIES

EDAExxxxx-Series

Patch Frame without doors for E-Series

  • Availability:
    EMEA
  • Status:
    Active
PATCH FRAME E-SERIES
  • PATCH FRAME E-SERIES
1 of 1

Specifications

Expand All

Environmental Space

Indoor

Mechanical Construction Note

For retro fitting: Remove doors of E-series cabinet - mount patch frame - mount doors to frame.

EU Directive 2011/65/EU (RoHS 2)

Yes

Packaging

Individually packaged

Update and Revision

Revision Number: 0.126 Revision Date: 08-05-2025

Packaging

Individually packaged

Update and Revision

Revision Number: 0.126 Revision Date: 08-05-2025


Report An Error

Part Numbers

Part # Rack Units Width Depth Color
EDAE16221
EDAE26421 42U 600 mm 115 mm Black
EDAE26422 42U 600 mm 115 mm Black
EDAE16422 42U 600 mm 75 mm Black
EDAE16421 42U 600 mm 75 mm Gray
EDAE28422 42U 800 mm 115 mm Black
EDAE28421 42U 800 mm 115 mm Gray
EDAE18422 42U 800 mm 75 mm Black
EDAE18421 42U 800 mm 75 mm Gray
EDAE26451 45U 600 mm 115 mm Gray
EDAE18452 45U 800 mm 75 mm Black
EDAE28471 47U 800 mm 115 mm Gray
