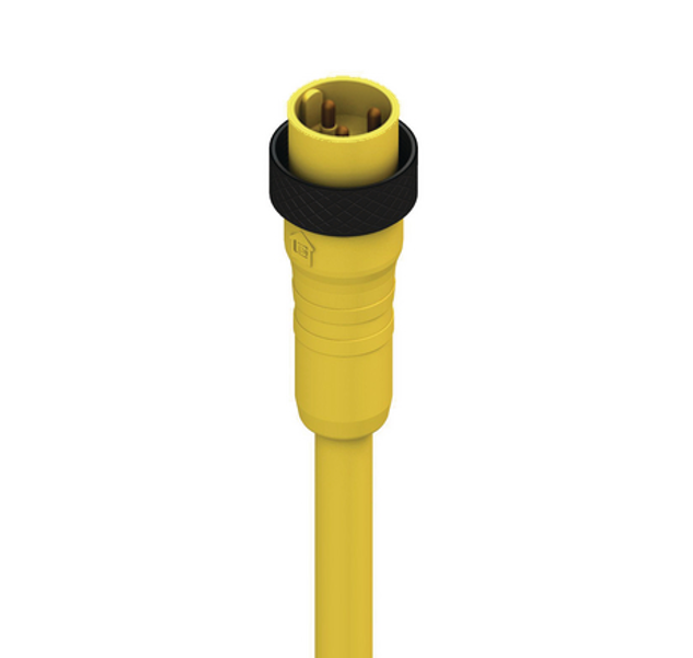

7/8" Power Single-Ended Cordset: Male, straight, 3-pin, yellow body, 600 V (UL), 10 A (UL); TPE yellow cable, 16 AWG
Regions Available: Global
|
Product Family |
Power Connector |
|---|---|
|
Product Sub Family |
7/8" |
|
Connector Type |
Cordset, single ended |
|
Type of Contact / Gender |
Male |
|
Connector Design |
straight |
|
Number of Pins |
3 |
|
Coding |
A |
|
Shielding |
Unshielded |
|
Attachment Type |
Coupling nut with internal threads |
|
Rated Voltage |
600 V |
|
Rated Current* |
10 A |
|
Rated Current (UL)* |
10 |
|
Ambient Temperature (Operation)* |
- 30 °C - + 90 °C |
|
Protection Degree / IP Rating** |
IP65, IP67, NEMA 6P |
|
Contact Plating |
Au over Ag |
|---|---|
|
Contact Bearer Color |
Yellow |
|
Molded Body Material |
TPU |
|
Molded Body Color |
Yellow |
|
Attachment Material |
Al |
|
Cable Number |
838 |
|---|---|
|
Conductor Size |
16 AWG (65/34) |
|
Number of Wires |
3 |
|
Minimal Bending Radius (Flexible Inst) |
˃ 10 x D |
|
Conductor material |
Stranded, BC |
|
Cable Jacket Material |
TPE |
|
Cable Jacket Color |
Yellow |
|
Cable Diameter D |
Ø 8 mm |
|
Wire Insulation Material |
PVC-Nylon |
|
Ambient Temperature (Fixed Installation) |
-30 °C to +90°C |
|
UL Cable Type |
TC-ER (90°C Dry / 75°C Wet) 600 V |
|
Flammability Class (Cable Jacket) |
FT4 / IEEC 1202 |
|
Cable Characteristics |
Oil and Coolant, Vibration, UV, Abrasion, and Weld Spark resistant, Continuous Flex |
|
UL-File |
E104696 |
|---|---|
|
UL |
UL recognized |
|
RoHS Compliant |
Yes |
|---|
|
Oil Resistance |
Oil Res II |
|---|
|
Note Derating |
Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|
Update and Revision |
Revision Number: 0.46 Revision Date: 02-03-2025 |
|---|
| Item # | Item Description | Cable Length |
|---|---|---|
| 500004116 | RS 301-838/1M | 1 m |
| 500004117 | RS 301-838/2M | 2 m |
| 500004118 | RS 301-838/3M | 3 m |
| 540002662 | RS 301-838/4M | 4 m |
| 500004119 | RS 301-838/5M | 5 m |
| 540002663 | RS 301-838/6M | 6 m |
| 500004120 | RS 301-838/10M | 10 m |
| 500004121 | RS 301-838/15M | 15 m |
| 500004122 | RS 301-838/20M | 20 m |
| 500004123 | RS 301-838/25M | 25 m |
| 500004124 | RS 301-838/30M | 30 m |
