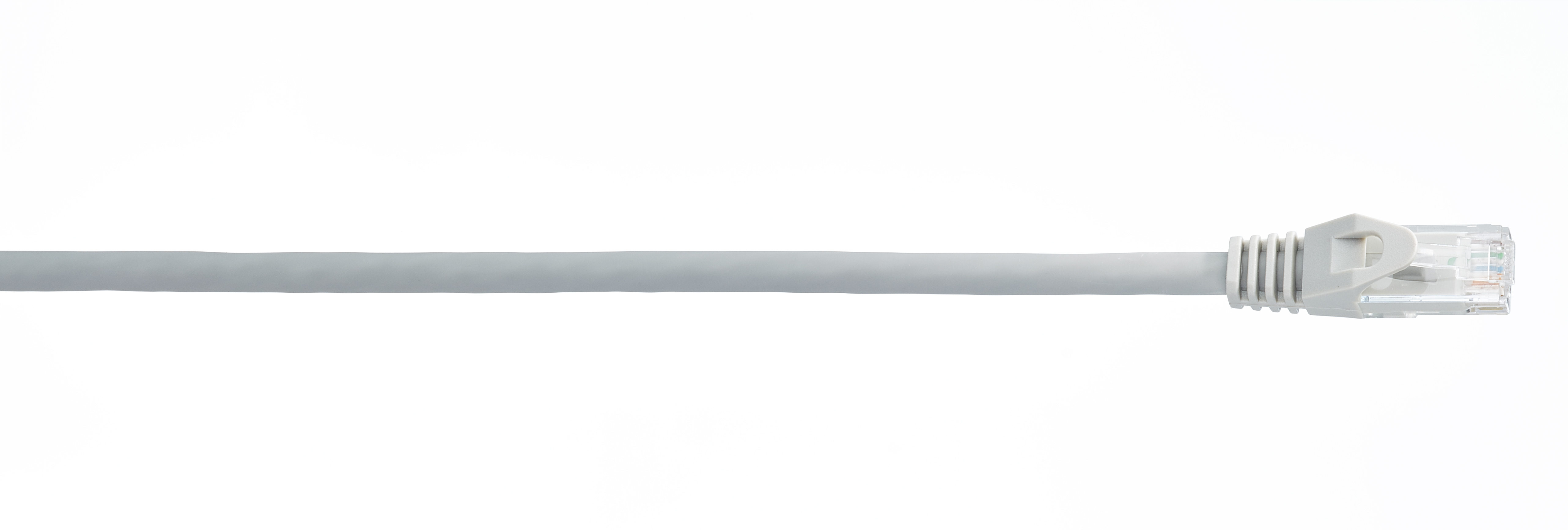

WireNet CAT6 Patch cord UTP

WireNet CAT6 Patch cord UTP LSZH

...
WireNet CAT6 Unshielded LSZH Patch cord, 26AWG, Stranded
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Telecommunications Room, Main Distribution Room, Data Centers

Physical Characteristics (Overall)

Wiring Scheme

T568A/B-T568A/B

Packaging

Individually packaged in a sealed plastic bag.

Electrical Characteristics

Dielectric Strength

1,000 V RMS @ 60 Hz for 1 minute

Temperature Range

Operating Temp Range

-20°C to +60°C

Standards

Data Category

Category 6

TIA/EIA Compliance

ISO/IEC 11801-1:2017; TIA 568-C.3

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU Directive 2002/95/EC (RoHS)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

MII Order #39 (China RoHS)

EUP 50

Plenum/Non-Plenum

Related Parts

WireNet Jacks, WireNet Panel

History

Update and Revision

Revision Number: 0.26 Revision Date: 06-09-2021

Part Numbers
Item # Color Length
CU-LPU6BK001M Black 1 m
CU-LPU6BK002M Black 2 m
CU-LPU6BK003M Black 3 m
CU-LPU6BK004M Black 4 m
CU-LPU6BK005M Black 5 m
CU-LPU6BK007M Black 7 m
CU-LPU6BL001M Blue 1 m
CU-LPU6BL002M Blue 2 m
CU-LPU6BL003M Blue 3 m
CU-LPU6BL004M Blue 4 m
CU-LPU6BL005M Blue 5 m
CU-LPU6BL007M Blue 7 m
CU-LPU6GY001M Grey 1 m
CU-LPU6GY002M Grey 2 m
CU-LPU6GY003M Grey 3 m
CU-LPU6GY004M Grey 4 m
CU-LPU6GY005M Grey 5 m
CU-LPU6GY007M Grey 7 m
CU-LPU6RD001M Red 1 m
CU-LPU6RD002M Red 2 m
CU-LPU6RD003M Red 3 m
CU-LPU6RD004M Red 4 m
CU-LPU6RD005M Red 5 m
CU-LPU6RD007M Red 7 m
CU-LPU6EW001M White 1 m
CU-LPU6EW002M White 2 m
CU-LPU6EW003M White 3 m
CU-LPU6EW004M White 4 m
CU-LPU6EW005M White 5 m
CU-LPU6EW007M White 7 m
CU-LPU6YL001M Yellow 1 m
CU-LPU6YL002M Yellow 2 m
CU-LPU6YL003M Yellow 3 m
CU-LPU6YL004M Yellow 4 m
CU-LPU6YL005M Yellow 5 m
CU-LPU6YL007M Yellow 7 m
