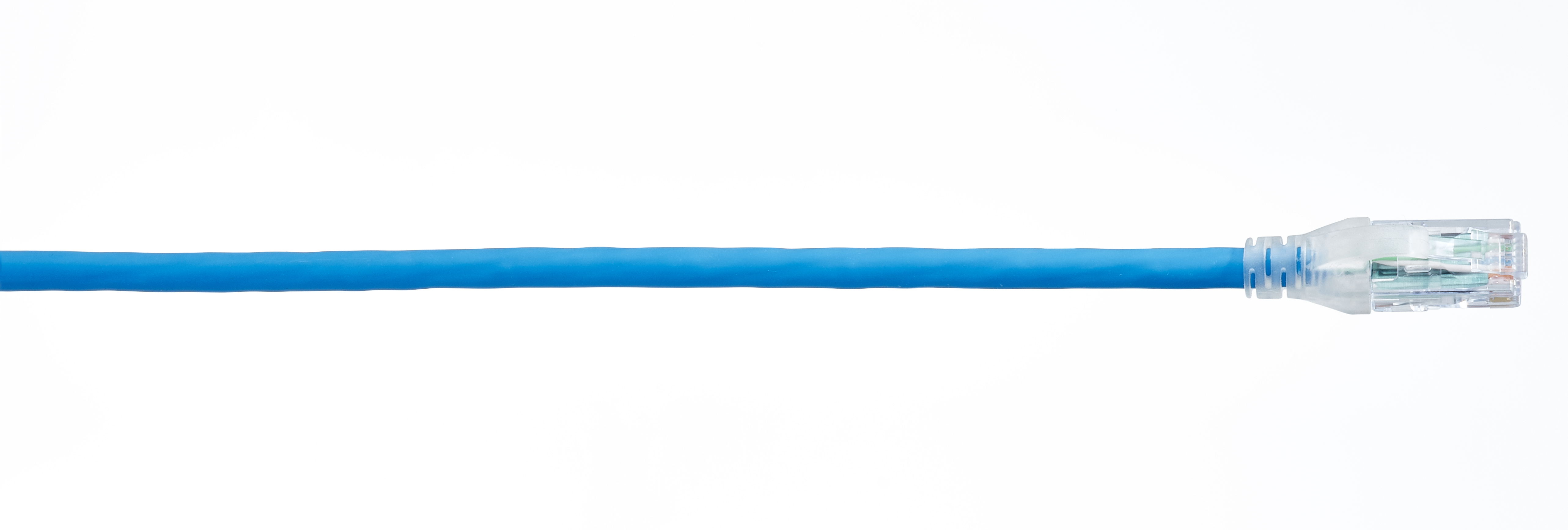

WireNet CAT6A Patch cord UTP LSZH
|
Suitable Applications |
Telecommunications Room, Main Distribution Room, Data Centers |
|---|
|
Wiring Scheme |
T568A/B-T568A/B |
|---|---|
|
Packaging |
Individually packaged in a sealed plastic bag. |
|
Dielectric Strength |
1,000 V RMS @ 60 Hz for 1 minute |
|---|
|
Operating Temperature Range |
-20°C to +60°C |
|---|
|
Data Category |
Category 6A |
|---|---|
|
TIA/EIA Compliance |
ISO/IEC 11801-1:2017; TIA 568-C.3 |
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
|
IEC Flammability |
IEC 60332-3-22 |
|---|
|
Related Parts |
WireNet Jacks (CU-J....) , WireNet Panel (NN-UNIV-E) or KeyConnect empty panels (AX....) |
|---|
|
Update and Revision |
Revision Number: 0.42 Revision Date: 04-12-2024 |
|---|
| Item # | Color | Length |
|---|---|---|
| CU-LPUABK001M | Black | 1 m |
| CU-LPUABK002M | Black | 2 m |
| CU-LPUABK003M | Black | 3 m |
| CU-LPUABK004M | Black | 4 m |
| CU-LPUABK005M | Black | 5 m |
| CU-LPUABK007M | Black | 7 m |
| CU-LPUABL001M | Blue | 1 m |
| CU-LPUABL002M | Blue | 2 m |
| CU-LPUABL003M | Blue | 3 m |
| CU-LPUABL004M | Blue | 4 m |
| CU-LPUABL005M | Blue | 5 m |
| CU-LPUABL007M | Blue | 7 m |
| CU-LPUAGY001M | Grey | 1 m |
| CU-LPUAGY002M | Grey | 2 m |
| CU-LPUAGY003M | Grey | 3 m |
| CU-LPUAGY004M | Grey | 4 m |
| CU-LPUAGY005M | Grey | 5 m |
| CU-LPUAGY007M | Grey | 7 m |
| CU-LPUARD001M | Red | 1 m |
| CU-LPUARD002M | Red | 2 m |
| CU-LPUARD003M | Red | 3 m |
| CU-LPUARD004M | Red | 4 m |
| CU-LPUARD005M | Red | 5 m |
| CU-LPUARD007M | Red | 7 m |
| CU-LPUAEW001M | White | 1 m |
| CU-LPUAEW002M | White | 2 m |
| CU-LPUAEW003M | White | 3 m |
| CU-LPUAEW004M | White | 4 m |
| CU-LPUAEW005M | White | 5 m |
| CU-LPUAEW007M | White | 7 m |
| CU-LPUAYL001M | Yellow | 1 m |
| CU-LPUAYL002M | Yellow | 2 m |
| CU-LPUAYL003M | Yellow | 3 m |
| CU-LPUAYL004M | Yellow | 4 m |
| CU-LPUAYL005M | Yellow | 5 m |
| CU-LPUAYL007M | Yellow | 7 m |
