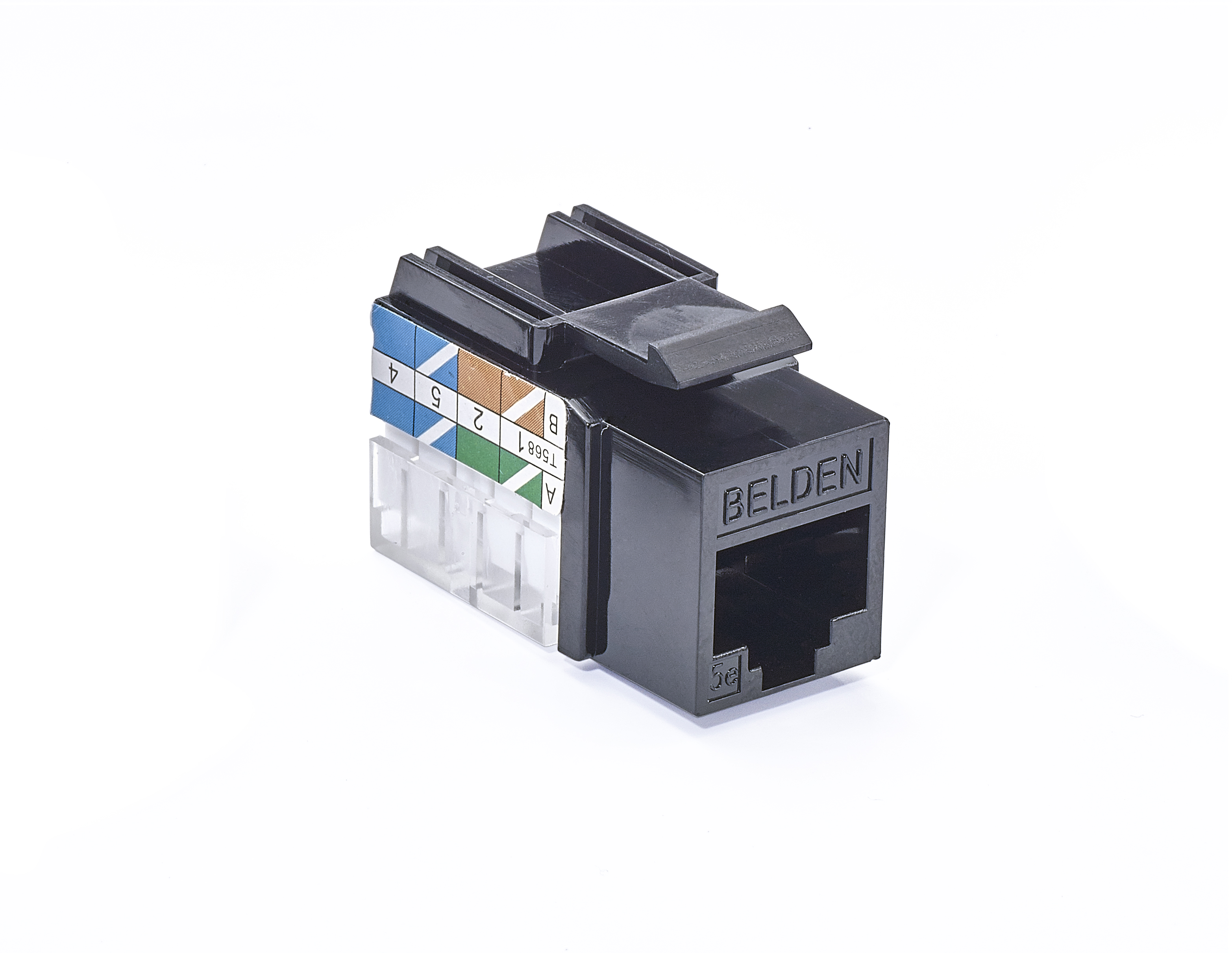

WireNet UTP CAT5E Jack

WireNet UTP CAT5E Jack

...
WireNet UTP CAT5E Jack
English Metric
Request Quote
Share
Get Product Alerts
Specifications
Report An Error
Physical Characteristics (Overall)

Packaging

Individually packaged in a sealed plastic bag.

Temperature Range

Operating Temp Range

-20°C to +60°C

Mechanical Characteristics

Termination Front Connection

Mated Connection

Termination Front Connection Durability

750 cycles

Termination Rear Connection

Mated Connection

Termination Rear Connection Durability

20 cycles

Standards

Data Category

Category 5e

TIA/EIA Compliance

ISO/IEC 11801-1:2017; TIA 568-C.3

Environmental Space

Indoor
Applicable Environmental and Other Programs

EU Directive 2011/65/EU (RoHS 2)

Yes

Flammability, LS0H, Toxicity Testing

Related Parts

WireNet Patch cords; WireNet Panel

Product Notes

Notes

Insulation O.D. Range = 0.90 to 1.6 mm, Cable Jacket O.D. Max = 9.2 mm

History

Update and Revision

Revision Number: 0.18 Revision Date: 05-25-2021

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Packaging
CU-JU5BK Black Individually packaged in a sealed plastic bag.
CU-JU5EW White Individually packaged in a sealed plastic bag.
