FX Brilliance OM1 SC

FX Brilliance OM1 SC Connector

...

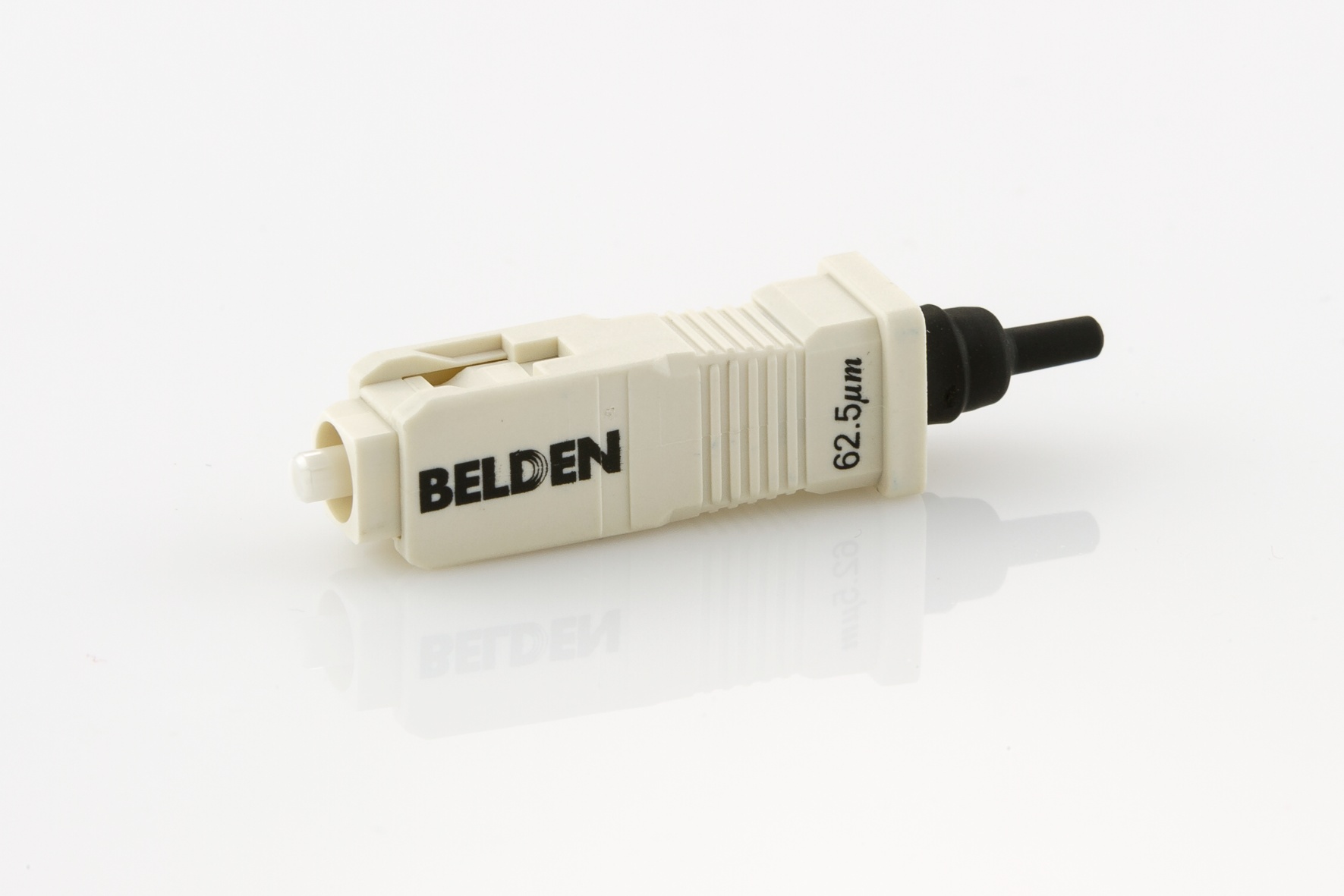

FX Brilliance Universal SC Field Installable Connector, Multimode, OM1, Beige Housing, 1/Pack, with support for 250 µm (using Breakout kit), 900 µm, 2 mm and 3 mm fiber (using jacketed boots). Includes 900 µm boot, other accessories (Breakout Kit & jacketed boots) sold separately.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Environmental Space

Indoor

Suitable Applications

Field-termination of fiber optic cables within Patch Panels, Distribution Frames, Workstation Outlets for FTTD (Fiber to the Desk), drops for FTTH (Fiber to the home) and MDU (Multiple Dwelling Units).

Construction
Fiber Cable Construction
Fiber Type
OM1

Weight

0.007 lbs
Mechanical Characteristics
Mechanical Specifications
Test TIA 568.3-D (MM)
Intermateability Requirement Compliant with TIA/EIA-604-3 (FOCIS 3)
Operating Temp Range -40°C to +60°C
Storage Temp Range -40°C to +75°C
Durability 500 cycles, less than 0.2 dB change, FOTP-21

Maximum Insertion Loss

0.50 dB

Typical Insertion Loss

0.20 dB

Minimum Reflectance @ 1550nm

-30 dB

Mechanical Tests
Description

Termination Style

Mechanical

Durabilities@Termination1

500 cycles, less than 0.2 dB change, FOTP-21

Temperature Range

Operating Temperature Range

-40°C to +60°C

Storage Temperature Range

-40°C to +75°C

Product Material
Materials
Description Material Color
Boot Rubber Black
Protective Ferrule Cap Plastic Opaque
Connector Body Plastic Beige
Ferrule Ceramic
Standards

TIA/EIA Compliance

TIA 568-C.3

MII Order #39 (China RoHS)

EUP 50

Safety Listing

ACA

Related Part Numbers

Included Parts

900 µm boot, protective ferrule cap

Related Parts

FX Brilliance Precision Installation Kit, Boots for 2mm and 3mm Jacketed Fiber, 250µm to 900µm break out kits.

Packaging

Individually packaged in a sealed plastic bag. Twenty-five (25) connectors come in a dust and moisture resistant blister package.

Product Notes

Notes

Refer to Installation Guide PX105234 for installation procedures. Fiber can be reterminated up to 5 times with the same connector.

History

Update and Revision

Revision Number: 0.62 Revision Date: 03-04-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Packaging UPC
AX105205-B25 Beige 25-Pack 611589105224
AX105205-S1 Beige 1-Pack 611589105231
