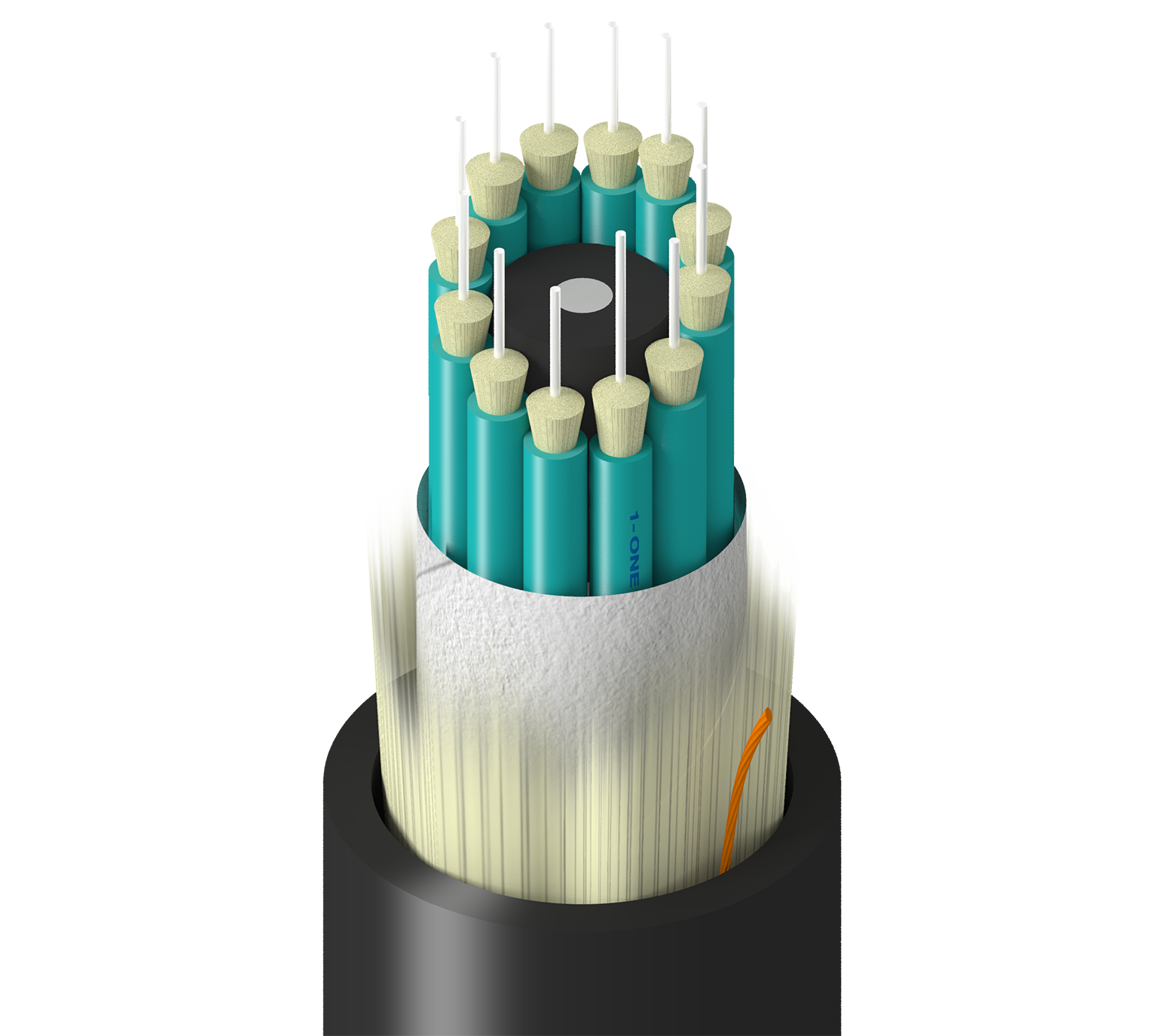

Fiber Breakout Cable
Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations
Fiber Core Diameter
PVC - Polyvinyl Chloride
Fiber Color Coding
Number of Active Subunits
Fibers Per Subunit
0.78 in (2.0 mm)
Subunit Strength Members
Waterblocking aramid yarns
Central Strength Member
Waterblocking Aramid Yarns
0.540 in (13.7 mm)
Min. Bend Radius During Installation
15x Cable OD
Min. Bend Radius During Operation
10x Cable OD
Max. Tensile Strength During Installation
1335 N (300 lbf)
Max. Tensile Strength During Operation
400 N (90 lbf)
Bulk Cable Weight
109 lbs/kft (162 kg/km)
Installation Temperature Range
-10°C to +60°C
Operating Temperature Range
-40°C to +70°C
Storage Temperature Range
Indoor/Outdoor, Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire
Ozone, Hydraulic fluid resistant
Update and Revision
Revision Number: 0.18 Revision Date: 04-08-2022
