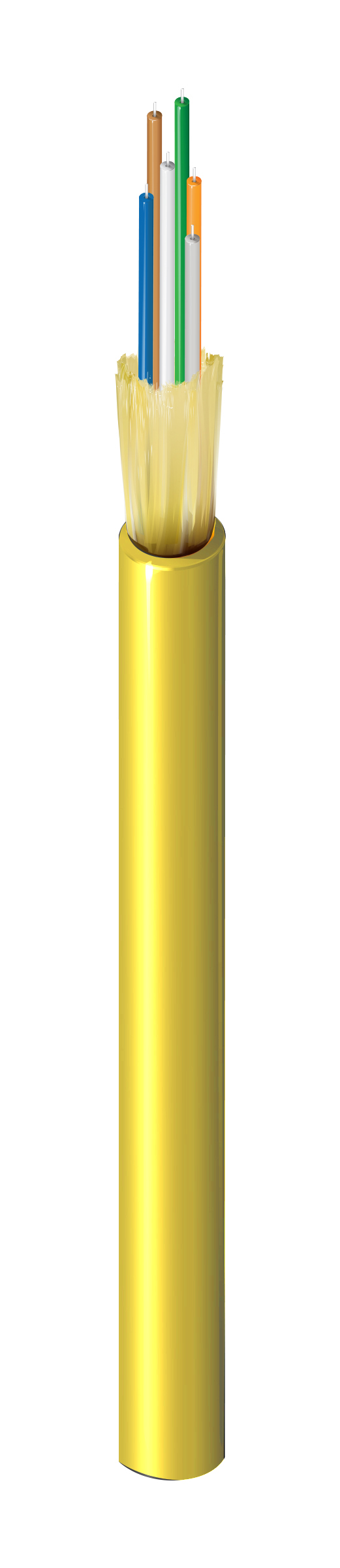

Fiber Distribution Cable
Fiber Core Diameter
PVC - Polyvinyl Chloride
Fiber Color Coding
0.190 in (4.8 mm)
Number of Ripcords
Min. Bend Radius During Installation
15x Cable OD
Min. Bend Radius During Operation
10x Cable OD
Max. Tensile Strength During Installation
660 N (150 lbf)
Max. Tensile Strength During Operation
200 N (45 lbf)
Bulk Cable Weight
15 lbs/kft (22 kg/km)
Installation Temperature Range
0°C to +60°C
Operating Temperature Range
0°C to +70°C
Storage Temperature Range
-40°C to +70°C
CA Prop 65, Product Lens™, Environmental Product Declaration (EPD) Available
Flammability / Reaction to Fire
European Directive Compliance
EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
Update and Revision
Revision Number: 0.217 Revision Date: 11-09-2022
