NYGU12BA008BKAA

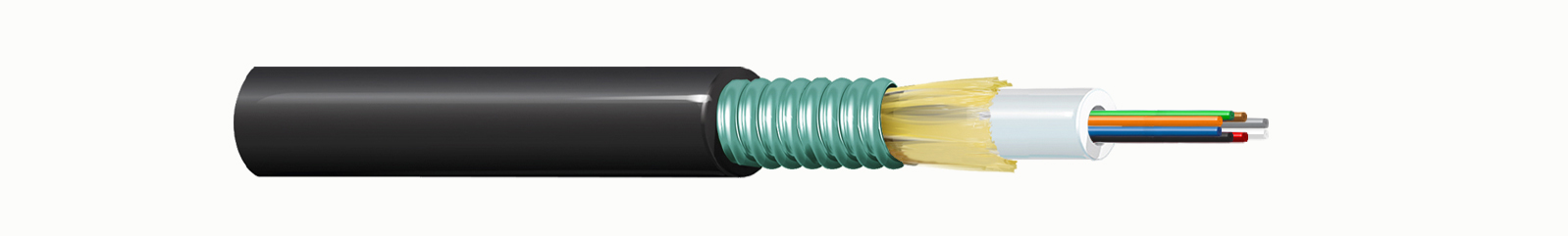

Outdoor OFC CLT (jelly filled): ARAMID YARNS + CST + Single PE Jacket, 8F, SM, G.652.D

...
Outdoor optical fiber Central Loose Tube (jelly filled) cable with aramid yarn as flexible non-metallic strength member, Corrugated Steel Tape armor and Single polyethylene jacket (black), 8F, SM, G.652.D
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Product Category

Fiber Central Loose Tube Cable

Suitable Applications

For outdoor use in structured (data) wiring systems such as industrial backbone, campus backbone cabling. For outdoor use in networks for industrial, telecom, cable TV and/or broadcast. Easy to install in ducts, tunnels and trenches and/or tubes.

Fiber Specifications

Fiber Type

OS2, G.652.D

Fiber Core Diameter

125 µm

Fiber Diameter

250 µm

Fiber Count

8

Fiber Color Coding

TIA-598-D

Cable Construction

Number of Active Subunits

1

Fibers Per Subunit

8

Subunit Waterblocking

Gel Filled

Subunit Diameter

3.0 mm

Subunit Color

Natural

Armor Specifications

Armor Type and Material

CST - Corrugated Steel Tape

Outer Jacket Specifications

Strength Member

Aramid Yarns

Jacket Material

PE - Polyethylene

Nom. Diameter

7.3 mm (0.29 in)

Color

Black

Optical Characteristics
Wavelength 1310 nm 1550 nm
Max. Attenuation 0.36 dB/km 0.22 dB/km
Mode Field Diameter 9.2 µm 10.4 µm
Mechanical Characteristics

Min. Bend Radius During Installation

20 x Cable OD

Min. Bend Radius During Operation

10 x Cable OD

Max. Tensile Strength During Installation

1000 N (220 lbf)

Max. Tensile Strength During Operation

400 N (90 lbf)

Crush Resistance

1000 N/100 mm for short term

Mechanical Tests
Description Tested Standard
Cable Min. Bend Radius Installation (Short Term) IEC 60794-1-21-E11
Cable Min. Bend Radius Operation (Long Term) IEC 60794-1-21-E11
Cable Max. Tensile Strength Installation (Short Term) IEC 60794-1-21-E1
Cable Max. Tensile Strength Operation (Long Term) IEC 60794-1-21-E1
Cable Max. Crush Resistance Installation (Short Term) IEC 60794-1-21-E3
Cable Max. Crush Resistance Operation (Long Term) IEC 60794-1-21-E3

Bulk Cable Weight

54 kg/km (36 lbs/1000ft)

Temperature Range

Operating Temperature Range

-40 °C to +70 °C

Storage Temperature Range

-40 °C to +70 °C

Standards and Compliance

Environmental Suitability

Outdoor

ISO/IEC Compliance

IEC 60793-1-1IEC 60794-1-1

European Directive Compliance

EU Directive 2011/65/EU (RoHS 2)

History

Update and Revision

Revision Number: 0.43 Revision Date: 12-07-2023
