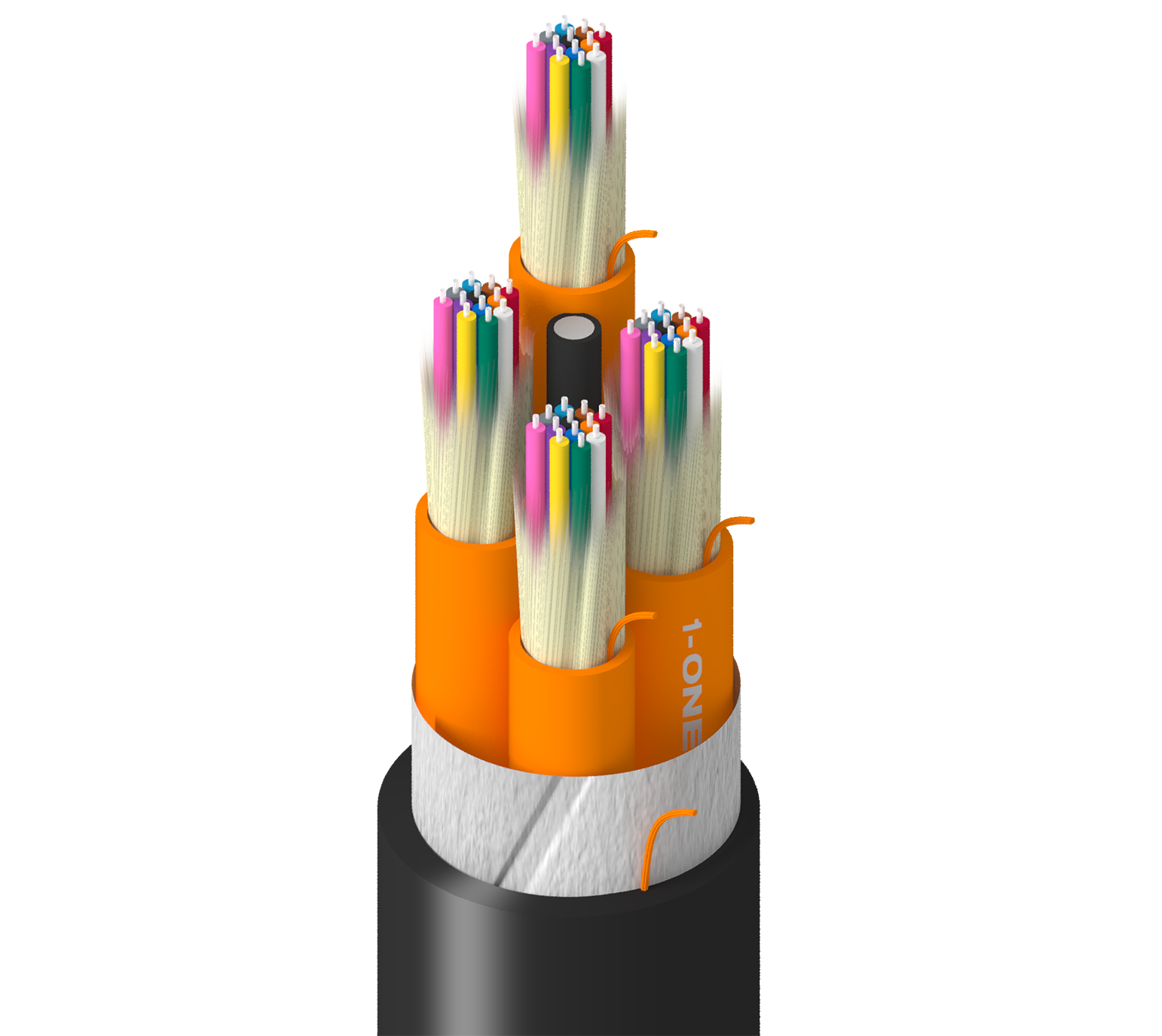

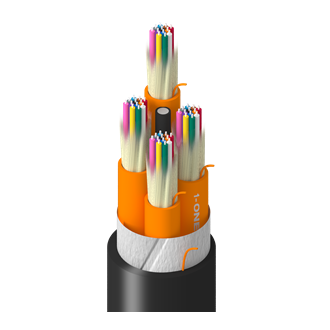

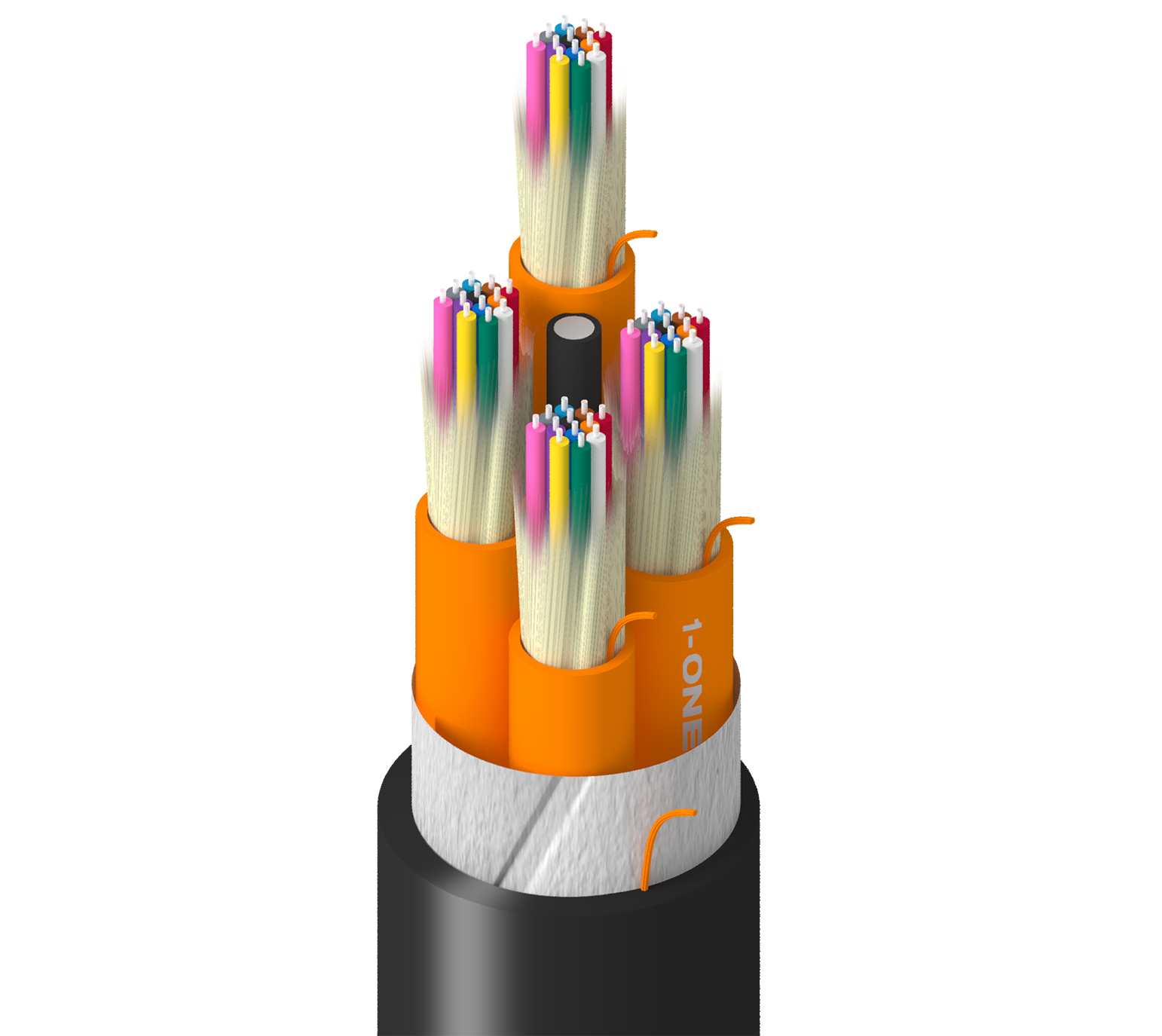

Fiber Distribution Cable
Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations
Fiber Core Diameter
LSZH - Low Smoke Zero Halogen
Fiber Color Coding
Number of Active Subunits
Fibers Per Subunit
0.230 in (5.8 mm)
Subunit Strength Members
Waterblocking Aramid Yarn
Central Strength Member
Waterblocking Aramid Yarns
LSZH - Low Smoke Zero Halogen (Flame Retardant)
0.688 in (17.5 mm)
Number of Ripcords
Min. Bend Radius During Installation
15x Cable OD
Min. Bend Radius During Operation
10x Cable OD
Max. Tensile Strength During Installation
1335 N (300 lbf)
Max. Tensile Strength During Operation
400 N (90 lbf)
Bulk Cable Weight
158 lbs/kft (235 kg/km)
Installation Temperature Range
-10°C to +60°C
Operating Temperature Range
-40°C to +70°C
Storage Temperature Range
Indoor/Outdoor, Sunlight Resistance, Burial
CA Prop 65
Flammability / Reaction to Fire
Other Standard Compliance(s)
NFPA 130, NFPA 502
Update and Revision
Revision Number: 0.25 Revision Date: 07-07-2022
