DEDN144U

Indoor/Outdoor Digital Electricity™, 4 Pr #14 Str TC, PVC Jkt, CL4, CL3, Wet Locations

...

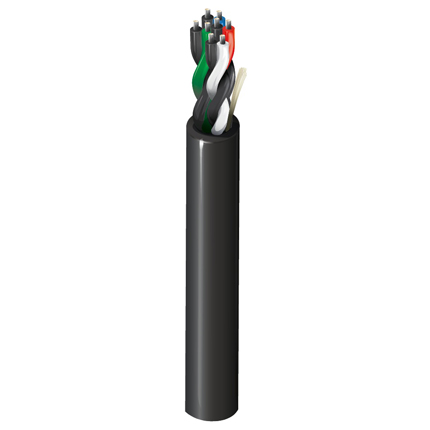

Indoor/Outdoor Digital Electricity™ Copper Cable, 4 Twisted Pair 14 AWG (19 x 27) Stranded Tinned Copper, PVC Insulation, Black PVC Jacket, Ripcord, CL4, CL3, Wet Locations, 2000 Ft Reel
Get Product Alerts

Specifications
Product Overview

Suitable Applications

Digital Electricity™, Fault Managed Power Systems (FMPS), remote powering, wet locations, in-conduit

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
14 19x27 TC - Tinned Copper 4

Total Number of Pairs

4

Insulation
Material Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.022 in
Color Chart
Number Color
1 Black & Red
2 Black & White
3 Black & Green
4 Black & Blue
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.601 in 0.040 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
2.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
25.5 pF/ft
Current
Max. Recommended Current [A]
9.7 Amps per Conductor at 25ºC (35°C Temperature Rise)
Voltage
UL Voltage Rating
450 V RMS
Temperature Range

UL Temp Rating

105°C

Operating Temperature Range

-30°C To +105°C

Mechanical Characteristics

Bulk Cable Weight

181 lbs/1000ft

Max. Pull Tension

380 lbs

Min. Bend Radius/Minor Axis

6.0 in

Standards

NEC Articles

Article 725

NEC/(UL) Compliance

CL4, CL3

UL AWM Style Compliance

AWM 2464

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

EU REACH SVHC Compliance (yyyy-mm-dd)

2020-01-27

Suitability

Suitability - Indoor

Yes

Suitability - Outdoor

Yes

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL 1685 Vertical Tray

History

Update and Revision

Revision Number: 0.52 Revision Date: 12-22-2023

Part Numbers
Item # Color Length
DEDN144U Black 2,000 ft
