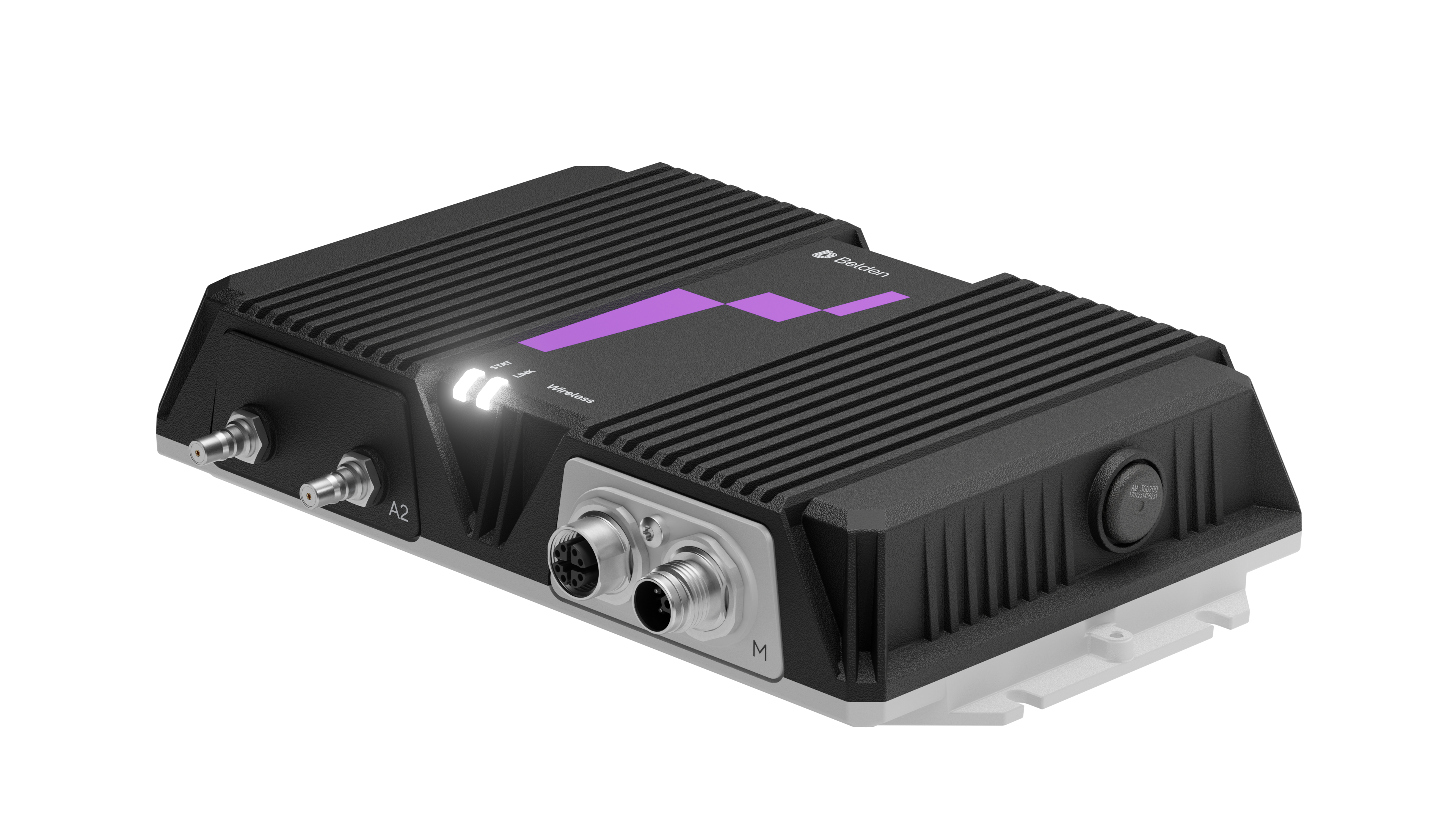

Industrial Access Point - IGX-EU71Q1MD1GGB9

Belden Wireless Industrial Access Point for Infrastructure WLAN with WiFi7 chipset. The rugged water-tight design is used for indoor deployments in Warehouses and Factories. Maximum WLAN density at the highest reliability for applications like roaming AGV robots in Warehouses. For Europe. With 5 GHz (including DFS) support.

Availability:

Global
Status:

Active

Quote

Specifications
Resources

Specifications

Expand All

General Information

Scope of delivery	1x Device; 1x Power Protection Cap; 1x Grounding Screw; 1x Safety Notice; 1x Packaging (Cardboard);

More Interfaces

Ethernet Connector Type	1x M12 X-Coded (8-pole) for Ethernet and PoE+; 10/100/1000 Mbit/s
LEDs	On the top of the device: System (tri-color); Connectivity (tri-color)

Radio technology

Modules

Description	5G	MIMO	Antenna Connector	Output Power	Additional Radio Features	Radio Protocol	Frequency Band	Modulation	Access Point Functionality	Client / STA Functionality
Module 1		2x2 MIMO	2x QLS® Advanced (female) for 5 GHz; QLS is compatible with all QLF connectors (e.g. QMA);	22±2dBm (2 chains) at MCS0; 14±2dBm (2 chains) at MCS13	Noise floor: -96±2dBm (20MHz) at MCS0, -46±2dBm (320MHz) at MCS13	802.11 a/n/ac/ax/be (Wi-Fi 4, 5, 6, 7)	Channel widths: 20, 40, 80, 160 MHz;5GHz in 5180…5925MHz (2x2 MIMO);	OFDM up to 4096 QAM	Yes	No
Module 2	"ERROR:#N/A"

Power requirements

Operating Voltage	9 to 36VDC on Power Connector; PoE+ on Ethernet Connector;
Power Consumption	maximum 25 W

Ambient conditions

Environmental Space	Indoor
Operating temperature	-20-+65 °C
Dimensions (WxHxD)	200 x 135 x 40 mm; 7.9 x 5.3 x 1.6 inches
Weight	600 g
Housing Material	Aluminium bottom plate (powder coated); Plastic cover (PC-GF10);
Housing Color	Black Plastic Cover with Purple Belden Branding
Mount Type	Ceiling, wall
Mating Side	Bottom
