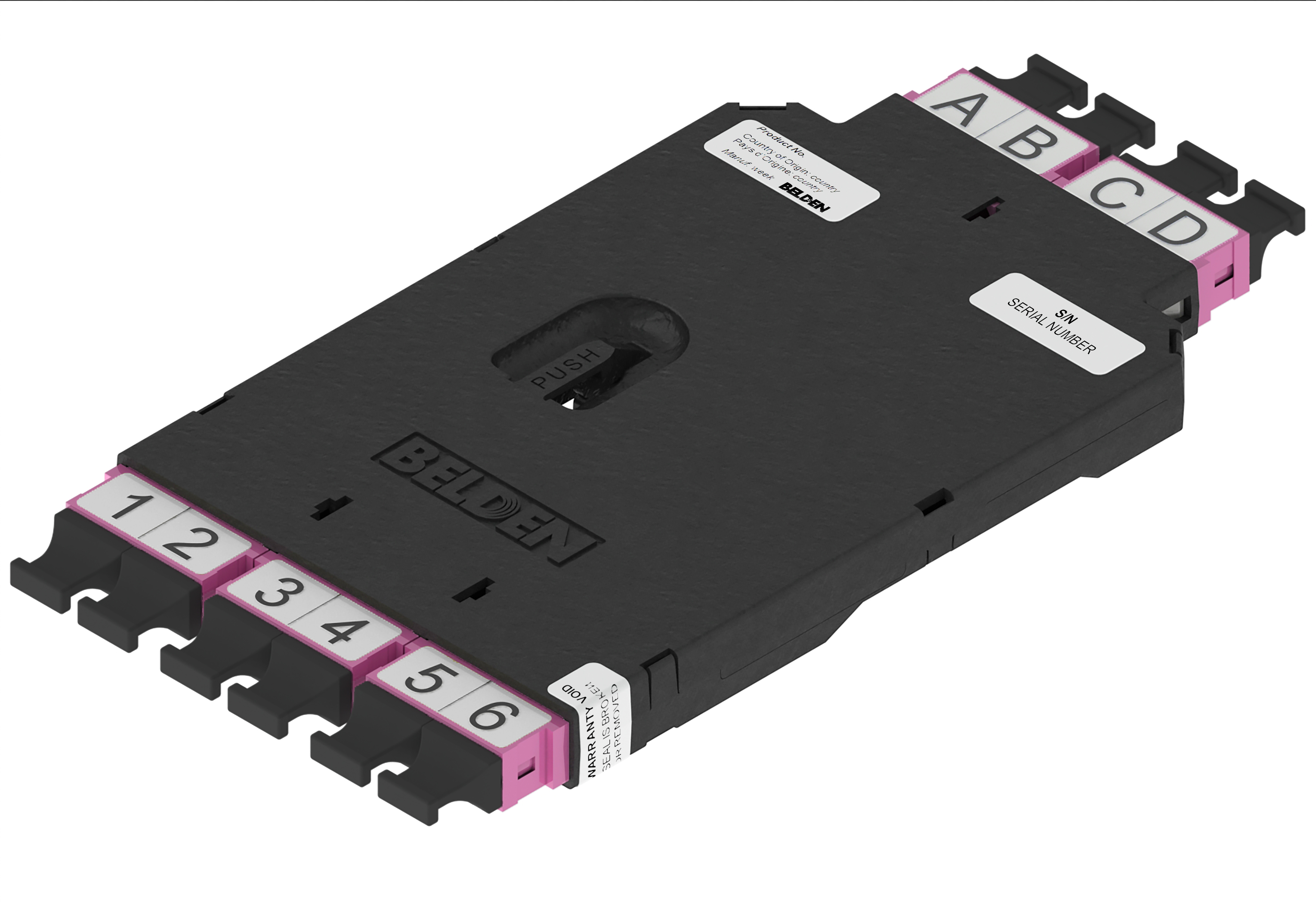

Product Number: FC4D064MMF

FX DCX CASS OM4 06P MPO12(F) MPO12(M)/8F SR4 EV_ADP

FX DCX CASSETTE, OM4, 06 PORTS, MPO-12 (FEMALE), MPO-12(MALE) 8F, 40G/100G SR4, ERIKA VIOLET ADAPTERS

  • Availability:
    Global
  • Status:
    Active
FC4D064MMF
5 of 5

Specifications

Expand All

Suitable Applications

Cross Connect Solutions, Telecommunication Rooms, Main Distribution Rooms, Data Centers

Weight

0.210 lbs

Overall Height

0.500 in

Overall Width

3.411 in

Overall Depth

7.064 in

Max Capacity

6 Ports MPO - Base-8 - 48 Fibers

Mechanical Tests

Description

Front Connection

Static

Operating Temperature Range

-10 to 60°C

Storage Temperature Range

-10 to 60°C

Materials

Description Material Color Type
Front Connector/Adapter Plastic - UL94V-0 Erika Violet MPO Male
Rear Connector/Adapter Plastic - UL94V-0 Erika Violet MPO Female
Cassette Assembly Plastic - UL94V-0 Black

TIA/EIA Compliance

TIA-568.3

MII Order #39 (China RoHS)

EUP 50

Related Parts

DCX Patch Panels, DCX MPO Trunks

Packaging

Individually packaged in a plastic shell, Shipped in cardboard box

Update and Revision

Revision Number: 0.13 Revision Date: 10-21-2025

Update and Revision

Revision Number: 0.13 Revision Date: 10-21-2025


Report An Error

Part Numbers

Item #
FC4D064MMF
