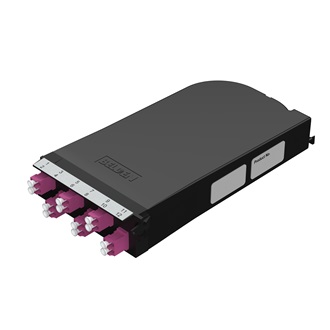

FC4H06LDFM

FX UHD CASS OM4 06P W/250-R-PT, LC_DX EV_ADP

FX UHD CASSETTE, OM4, 06 PORTS, WITH 250um RIBBON PT, LC DUPLEX, ERIKA VIOLET ADAPTERS

Request Quote

Share

Get Product Alerts

Specifications

Report An Error

Environmental Space	Indoor
Suitable Applications	FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers

Fiber Type
OM4

Weight	0.500 lbs
Height	1.500 in
Width	4.500 in
Length	9.080 in

Max Capacity	12 Fibers

Description

Front Connection	Static

Operating Temperature Range	-10°C To +60°C
Storage Temperature Range	-10°C To +75°C

Description	Material	Color	Type
Adapter Sleve	Zirconia-Ceramic
Front Connector Body	Plastic - UL94V-0	Erika Violet	LC Duplex
Cassette Assembly	Plastic - UL94V-0	Black

Connector Type	Max. Insertion Loss	Min. Return Loss
LC Duplex	0.15 dB	-25 dB

MII Order #39 (China RoHS)	EUP 50

Included Parts	250µm mass fusion pigtails, splice protection sleeve, rubber strip, and cable ties
Related Parts	FX UHD & FXU Patch Panels

Packaging	Individually packaged in a plastic shell, Shipped in cardboard box (14/box)
Notes	Splice holders (total of 12 splices), 250um ribbon pigtail and splice protector are included. For additional information about this product, please contact our Technical Support group or your local sales representative.

Update and Revision	Revision Number: 0.28 Revision Date: 08-07-2024
