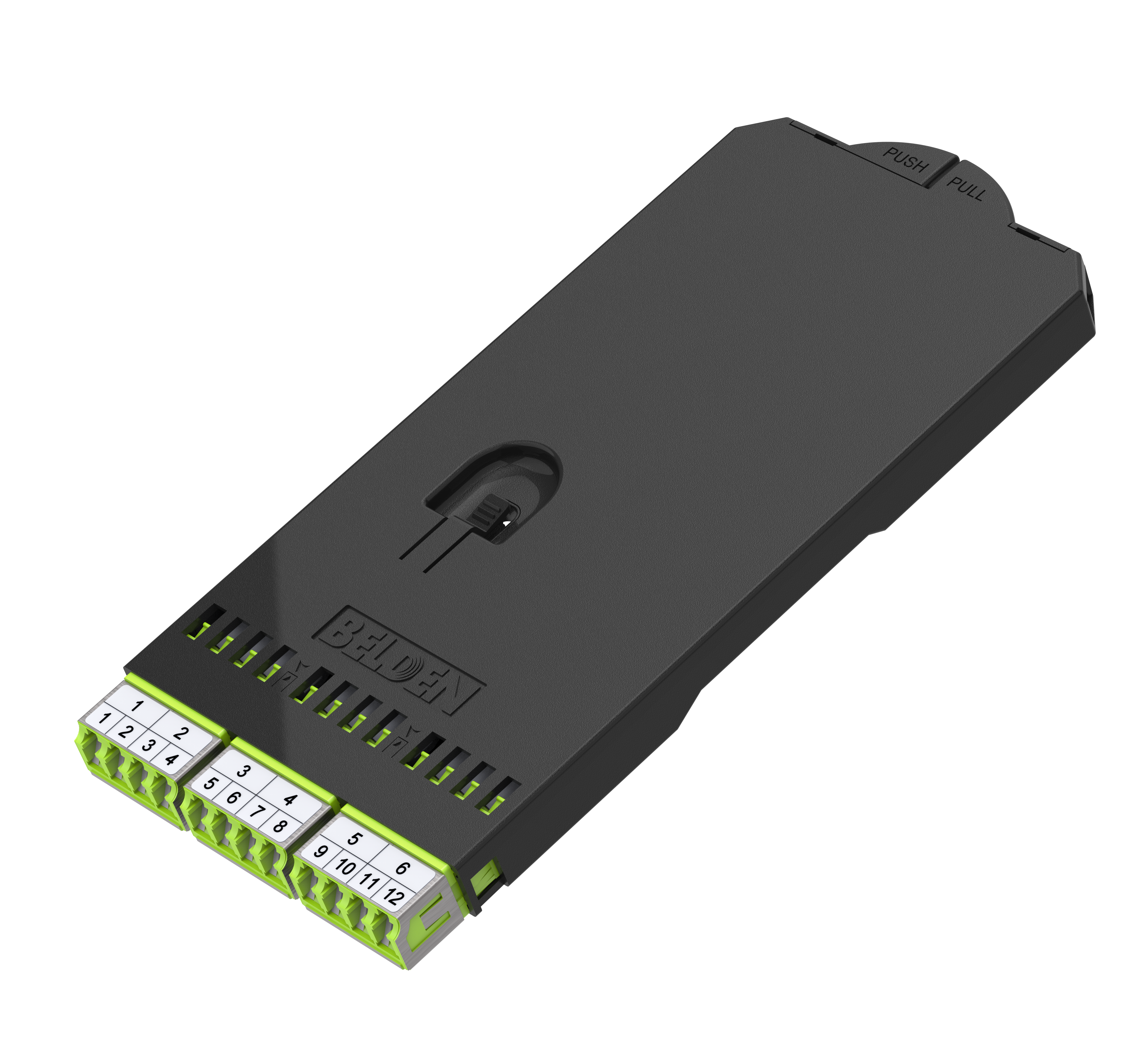

FC5D06LDFPXL

Faceplates and Panels - DCX Splice Cassette LC Duplex

...
FX DCX SPLICE CASSETTE, OM5, 06 PORTS, LC DUPLEX (FLIPPED PAIR) WITH 250µm PIGTAILS, LIME GREEN ADAPTERS
Get Product Alerts

Specifications
Product Overview

Environmental Space

Indoor

Suitable Applications

DCX, Data Centers, Central Equipment Room

Construction
Fiber Cable Construction
Fiber Type
OM5

Weight

0.139 lbs

Height

0.500 in

Width

3.400 in

Length

7.190 in

Physical Specifications

Max Capacity

12Fibers, 6 LC Duplex Ports

Mechanical Characteristics
Mechanical Tests
Description
Temperature Range

Operating Temperature Range

-10°C to 60°C

Storage Temperature Range

-10°C to 75°C

Product Material
Materials
Description Material Color Type
Cassette Assembly Plastic - UL94V-0 Black
Front Connector Body Plastic - UL94V-0 Lime Green LC Duplex w/ Internal Shutters
Adapter Sleeve Zirconia-Ceramic
Fiber Connector Performance
Description Max. Insertion Loss Min. Return Loss
LC Duplex 0.15 dB -30 dB
Standards

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Related Parts

DCX,Frames Modules & Patch Panels

Product Notes

Packaging

Individually packaged in a plastic shell, Shipped in cardboard box

Notes

For more information, please refer to our web site at http://www.belden.com.

History

Update and Revision

Revision Number: 0.10 Revision Date: 02-15-2024
