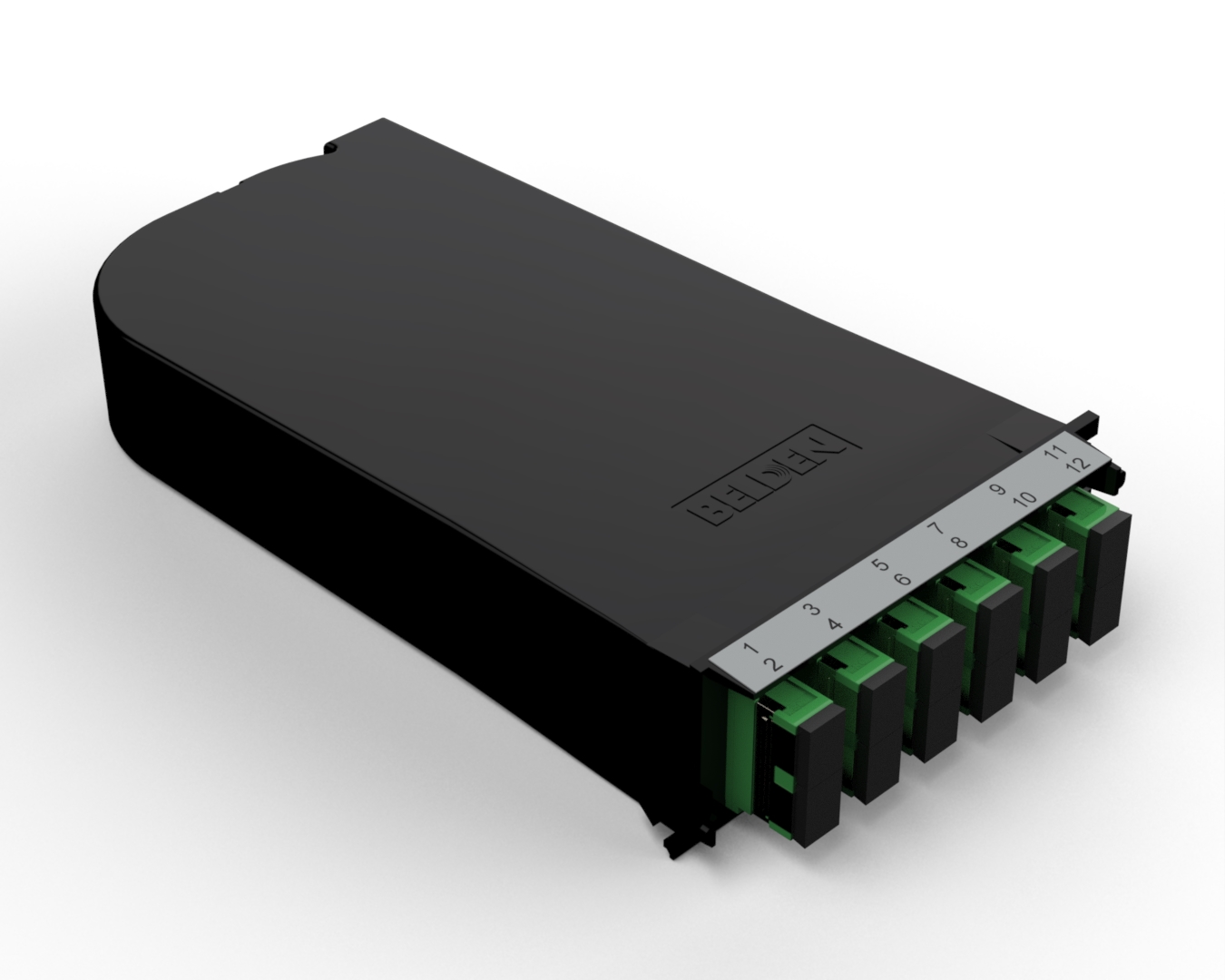

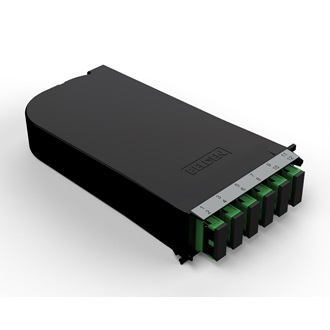

FCSH12SBFS

FX UHD Splice Cassette OS2 12 Ports

FX UHD CASSETTE, OS2, 12 PORTS, SPLICING, SC/APC SIMPLEX, GREEN ADAPTERS

Regions Available: Global

Request Quote

Share

Get Product Alerts

Specifications

Report An Error

Environmental Space	Indoor
Suitable Applications	FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers

Fiber Cable Construction

Fiber Type
OS2

Weight	0.657 lbs
Height	1.5 in
Width	4.5 in
Length	6.6 in

Max Capacity	12 fibers, 12 SC Simplex ports

Inner Jacket	Inner Jacket

Mechanical Tests

Description

Front Connection	Static

Operating Temperature Range	-10 to 60°C
Storage Temperature Range	-10 to 75°C

Materials

Element	Description	Material	Color
Zirconia-Ceramic	Adapter Sleve Material	Zirconia-Ceramic
Plastic - UL94V-0	Front Connector Body	Plastic - UL94V-0	Green
Plastic - UL94V-0	Cassette Assembly	Plastic - UL94V-0	Black

Fiber Connector Performance

Max. Insertion Loss	Min. Return Loss
0.25 dB	65 dB

MII Order #39 (China RoHS)	EUP 50

Related Parts	FX UHD & FXU Patch Panels, FX MPO Trunks

Packaging	Individually packaged in a plastic shell, Shipped in cardboard box (14/box)

Update and Revision	Revision Number: 0.229 Revision Date: 02-10-2025
