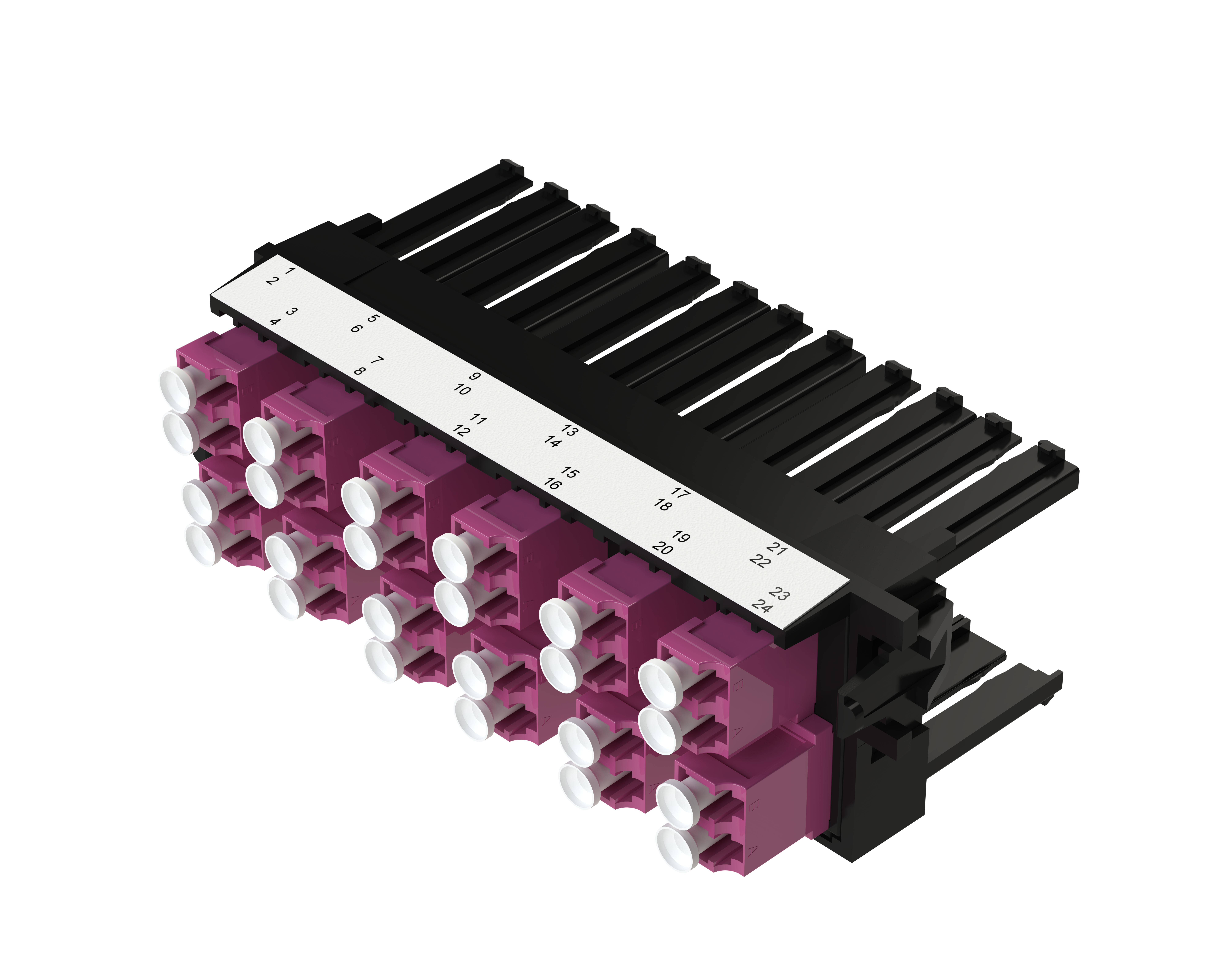

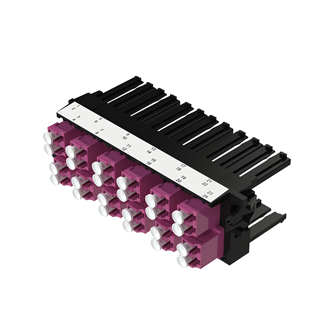

Product Number: FF4U12LD
FXU Frame OM4 12P LC DUPLEX
FX Ultra Frame, OM4, 12 Ports, LC Duplex, Erika Violet Adapters
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Environmental Space |
Indoor |
|---|---|
|
Suitable Applications |
FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
Fiber Cable Construction
| Fiber Type |
|---|
| OM4 |
|
Weight |
0.25 |
|---|---|
|
Height |
1.5 |
|
Width |
4.46 in |
|
Depth |
2.2 in |
Inner Jacket
|
Inner Jacket |
Inner Jacket |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
|
Operating Temperature Range |
-10 to 60°C |
|---|---|
|
Storage Temperature Range |
-10 to 75°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Frame | Plastic - UL94V-0 | Black | |
| Front Connector Body | Plastic - UL94V-0 | Erika Violet | LC Duplex |
Standards
|
MII Order #39 (China RoHS) |
EUP 50 |
|---|
Related Part Numbers
|
Included Parts |
Dust Caps |
|---|---|
|
Related Parts |
FiberExpress Ultra Patch panels, Pre-terminated MPO low loss cable assemblies |
Product Notes
|
Packaging |
Individually packaged in a plastic shell, Shipped in cardboard box (60/box) |
|---|
History
|
Update and Revision |
Revision Number: 0.15 Revision Date: 04-01-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.15 Revision Date: 04-01-2025 |
|---|
Part Numbers
| Item # | Connector Type | Port Count | Fiber Count |
|---|---|---|---|
| FF4U12LD | LC Duplex | 12 Port | 24 |
