FF5H18LD

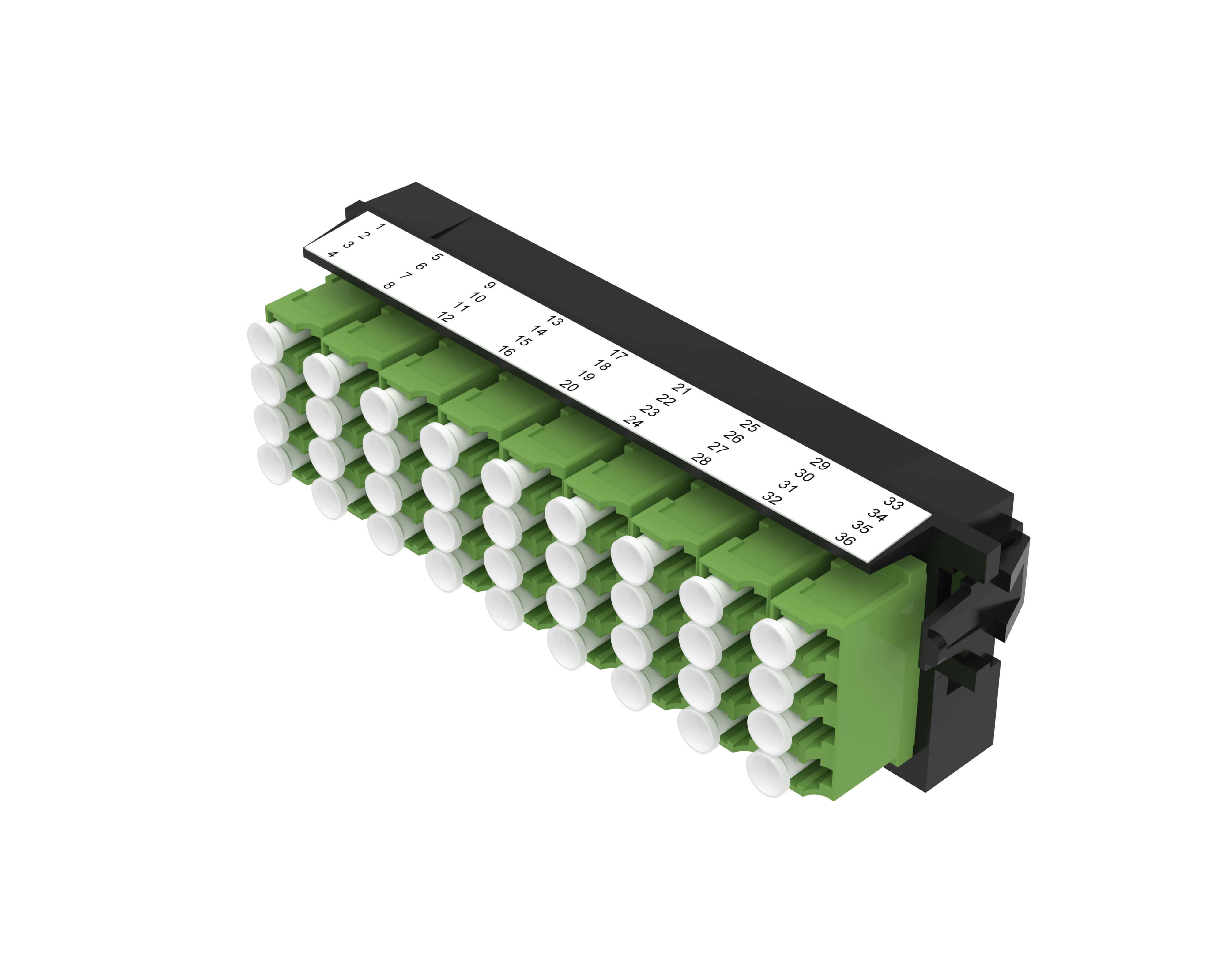

FX UHD FRAME, OM5, 18 PORTS, LC DUPLEX

...
FX UHD FRAME, OM5, 18 PORTS, LC DUPLEX, LIME GREEN ADAPTERS
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Environmental Space

Indoor

Suitable Applications

FiberExpress Ultra Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers

Construction
Fiber Cable Construction
Fiber Type
OM5

Height

1.5 in.

Width

4.460 in

Depth

2.20 in
Mechanical Characteristics
Mechanical Tests
Description
Temperature Range

Operating Temperature Range

-10 to 60°C

Storage Temperature Range

-10 to 75°C

Product Material
Materials
Description Material Color
Frame Plastic - UL94V-0 Black
Front Connector Body Plastic - UL94V-0 Lime green
Standards

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Included Parts

Dust Caps

Related Parts

FX UHD Rack-Mount and Wall-Mount Patch Panels

Product Notes

Packaging

Individually packaged in a plastic shell, Shipped in cardboard box (60/box)

History

Update and Revision

Revision Number: 0.7 Revision Date: 11-28-2024
