Product Number: TAP Cassette OM3 6P LC-MPO-LC

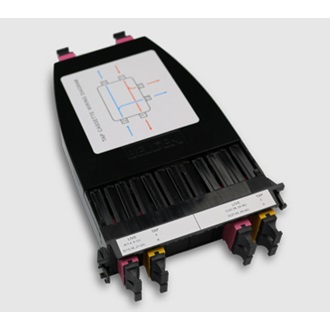

FX UHD TAP Cassette, OM3 Aqua 6 Port 70/30 Split Ratio
FX UHD TAP (Traffic Analysis Port) Cassette, OM3 Aqua 6 Port 70/30 Split Ratio Live LC, Live MPO (12f) TAP LC Duplex
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Environmental Space |
Indoor |
|---|---|
|
Suitable Applications |
FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
|
Weight |
0.227 kg |
|---|---|
|
Height |
38.1 mm |
|
Width |
114.3 mm |
|
Length |
230.632 mm |
Physical Specifications
|
Max Capacity |
12 Fibers (Output) |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
|
Front Connection |
1 Inch Pullout |
|---|
Temperature Range
|
Operating Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-10°C To +75°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Adapter Sleeve | Zirconia-Ceramic | ||
| Front Adapter Body | Plastic-UL94V-0 | Aqua | LC-Duplex |
| Front Adapter Body | Plastic-UL94V-0 | Yellow | LC-Duplex |
| Rear Adapter Body | Plastic-UL94V-0 | Aqua | MPO Adapter |
| Cassette Assembly | Plastic-UL94V-0 | Black |
Standards
|
MII Order #39 (China RoHS) |
Yes |
|---|
Related Part Numbers
|
Related Parts |
FX UHD & FXU Patch Panels, FX Patch Cords |
|---|
Product Notes
|
Packaging |
Individually packaged in a plastic shell, Shipped in cardboard box |
|---|
History
|
Update and Revision |
Revision Number: 0.32 Revision Date: 05-31-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.32 Revision Date: 05-31-2024 |
|---|
Part Numbers
| Item # | Color |
|---|---|
| TC3H06LDMFLD | Aqua |
